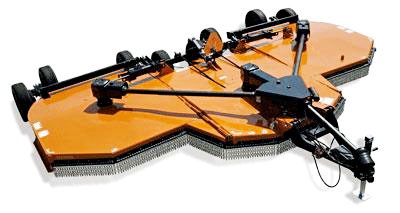

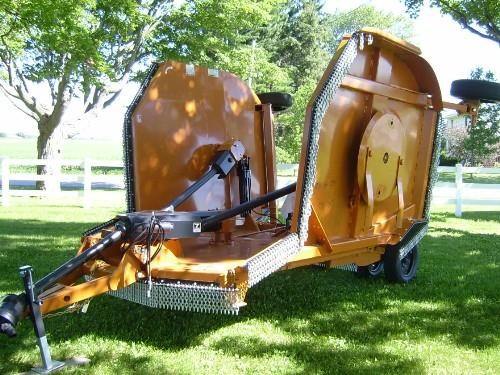

2022 WOODS BW20.61W Batwing Slasher
Price:
POA
Report Listing
Make an enquiry
Dealer
Tisca
1137 Nambour Connection Rd
Nambour, QLD
| Title | 2022 WOODS BW20.61W Batwing Slasher |
| Make | WOODS |
| Price | POA |
| Listing Type | New |
| Stock Number | S134 |
| RefCode | TA710991 |
| Cutting Width - mm | 6096 |
| Cutting Height - mm | 381 |
| Tractor Connection | Trailed |
| Power Rating - Hp | 300 |
| Safety Debris chains | Front and Rear |
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive Woods rotary cutters are designed for the extremes of real world use. No matter if youre cutting brush or mowing pastures, Woods has the rotary cutter to fit your needs.
Woods rotary cutters dedicated to craftsmanship and innovation for more than 60 years.
FEATURES
Specifications
PTO Horsepower: 70-300 hp
Side frame depth: 13.25
Working width: 240"
Cutting height: 2" - 15"
Cutting capacity diameter: 3"
Hitch: self-leveling clevis; optional pintel ring
Transport width: 123"
Overall width / length: 250" / 198"
Deck type: smooth, sloped
Deck thickness: .135"
Side frame thickness: .25"
Hinge rod diameter: 1" full length
Weight: 6,600 lbs
Tongue weight: 2,400 lbs
Main driveline rating: Cat 6 CV or Cat 5 heavy 3 joint
Output shaft diameter: 2.38"
Splitter / spindle gearbox hp: 235 (190) hp
Blade type: hi-lift, flat or shredder
Blade overlap: 6"
Blade tip speed 540 rpm: 15,450 fpm
Blade tip speed 1,000 rpm: 16,300 fpm
Material flow system: standard baffels
Stump jumper type: standard round-welded
Wing flex up / down: 90° up, 22° down
Suspension: tandem spring arms
Wheel type: 24" foam filled used aircraft
Wing leveling adjustment: easy adjust turnbuckle
Shielding: chain
Gearbox warranty: 5 years
Deck rust-through warranty: 1 years
TISCA are the national distributor for Woods Equipment, contact us today for more information on this product.
Put our products to the test in your own back yard. Rugged, dependable and productive Woods rotary cutters are designed for the extremes of real world use. No matter if youre cutting brush or mowing pastures, Woods has the rotary cutter to fit your needs.
Woods rotary cutters dedicated to craftsmanship and innovation for more than 60 years.
FEATURES
- 20-foot Heavy-Duty Dual-Wing Cutter
- Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
- Tractor HP range: 70-300 hp
- Cuts brush up to 3-inches in diameter
- Side frame depth of 13.25 inches the deepest in the industry
- Fully baffled deck for even distribution and a finer shred

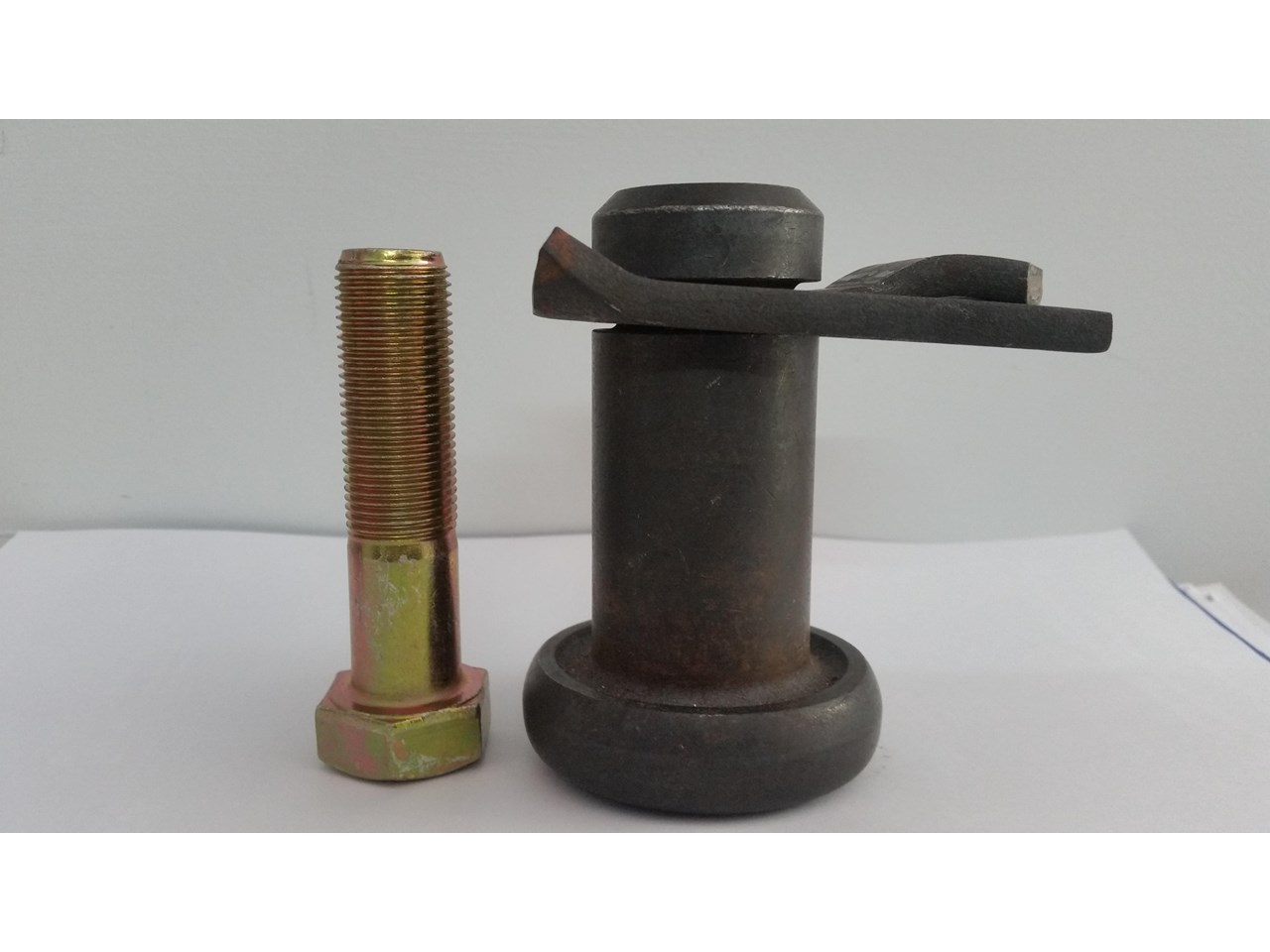

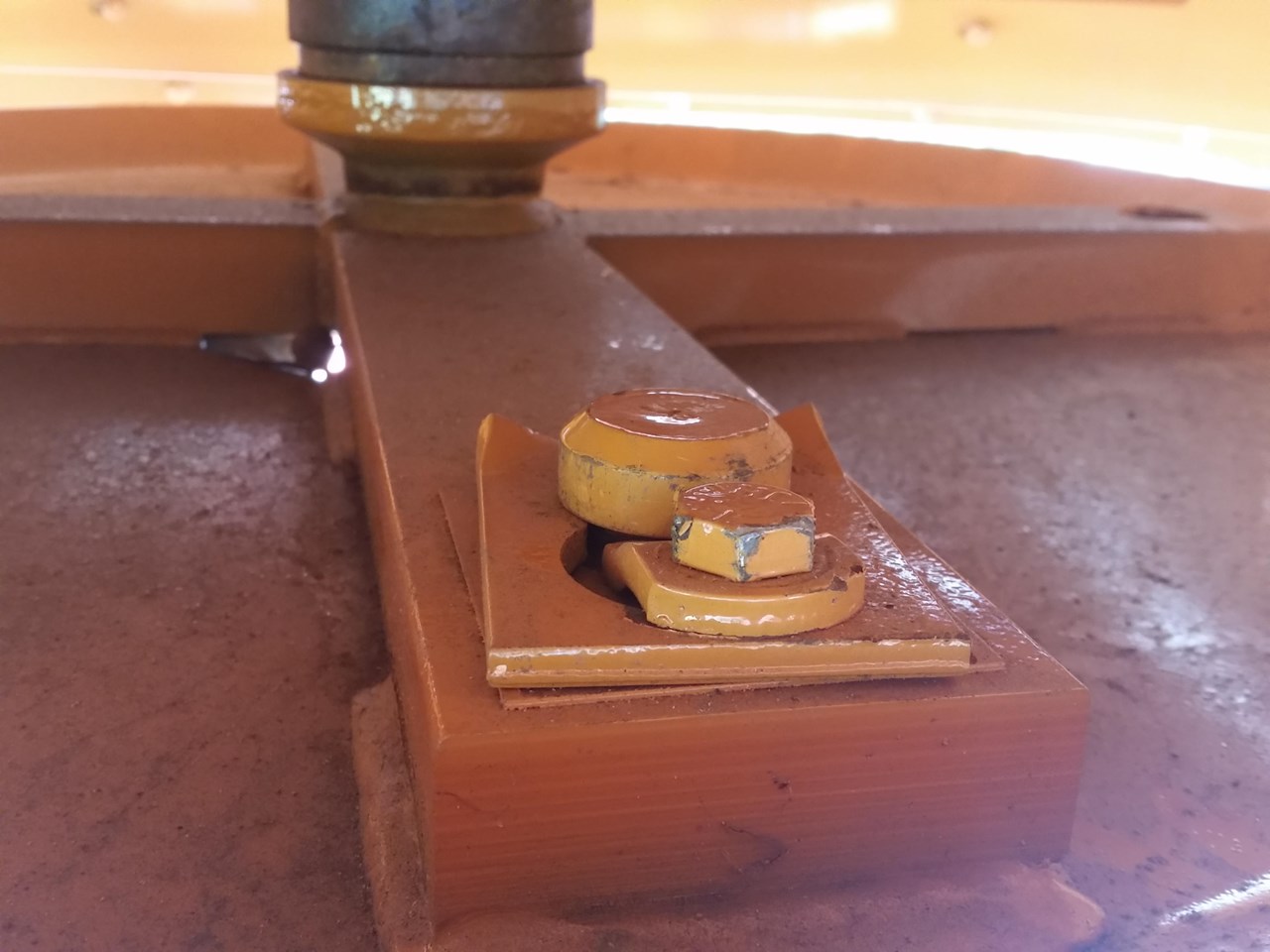

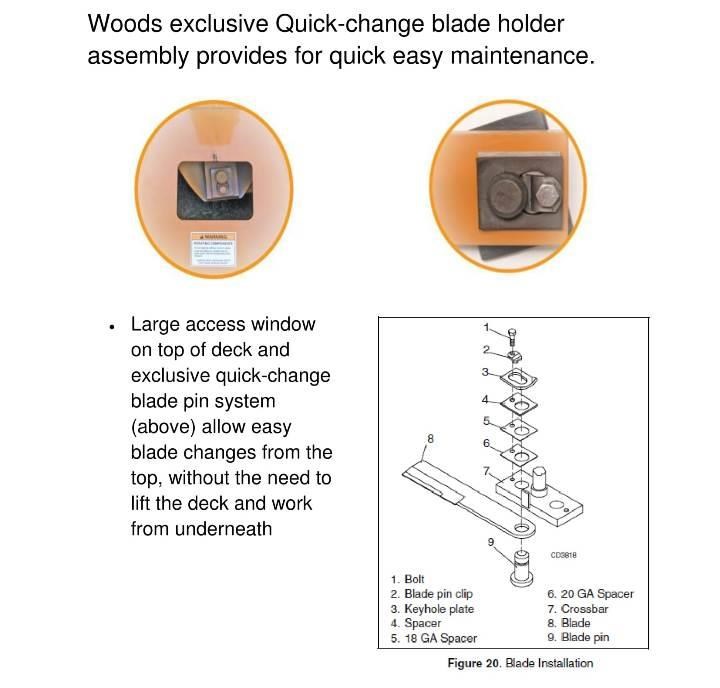

- Exclusive quick-change pins enable speedy blade changes in the field
- Five-year gearbox limited warranty
- Three-year deck rust-through warranty
Specifications
PTO Horsepower: 70-300 hp
Side frame depth: 13.25
Working width: 240"
Cutting height: 2" - 15"
Cutting capacity diameter: 3"
Hitch: self-leveling clevis; optional pintel ring
Transport width: 123"
Overall width / length: 250" / 198"
Deck type: smooth, sloped
Deck thickness: .135"
Side frame thickness: .25"
Hinge rod diameter: 1" full length
Weight: 6,600 lbs
Tongue weight: 2,400 lbs
Main driveline rating: Cat 6 CV or Cat 5 heavy 3 joint
Output shaft diameter: 2.38"
Splitter / spindle gearbox hp: 235 (190) hp
Blade type: hi-lift, flat or shredder
Blade overlap: 6"
Blade tip speed 540 rpm: 15,450 fpm
Blade tip speed 1,000 rpm: 16,300 fpm
Material flow system: standard baffels
Stump jumper type: standard round-welded
Wing flex up / down: 90° up, 22° down
Suspension: tandem spring arms
Wheel type: 24" foam filled used aircraft
Wing leveling adjustment: easy adjust turnbuckle
Shielding: chain
Gearbox warranty: 5 years
Deck rust-through warranty: 1 years
TISCA are the national distributor for Woods Equipment, contact us today for more information on this product.
Woods BW20.60W Batwing® Cutter. 20-foot Heavy-Duty Dual-Wing Cutter, Main driveline: Cat 6 CV or Cat 5 heavy 3 joint, Tractor HP range: 70-300 hp, Cuts brush up to 3-inches in diameter. Tisca
