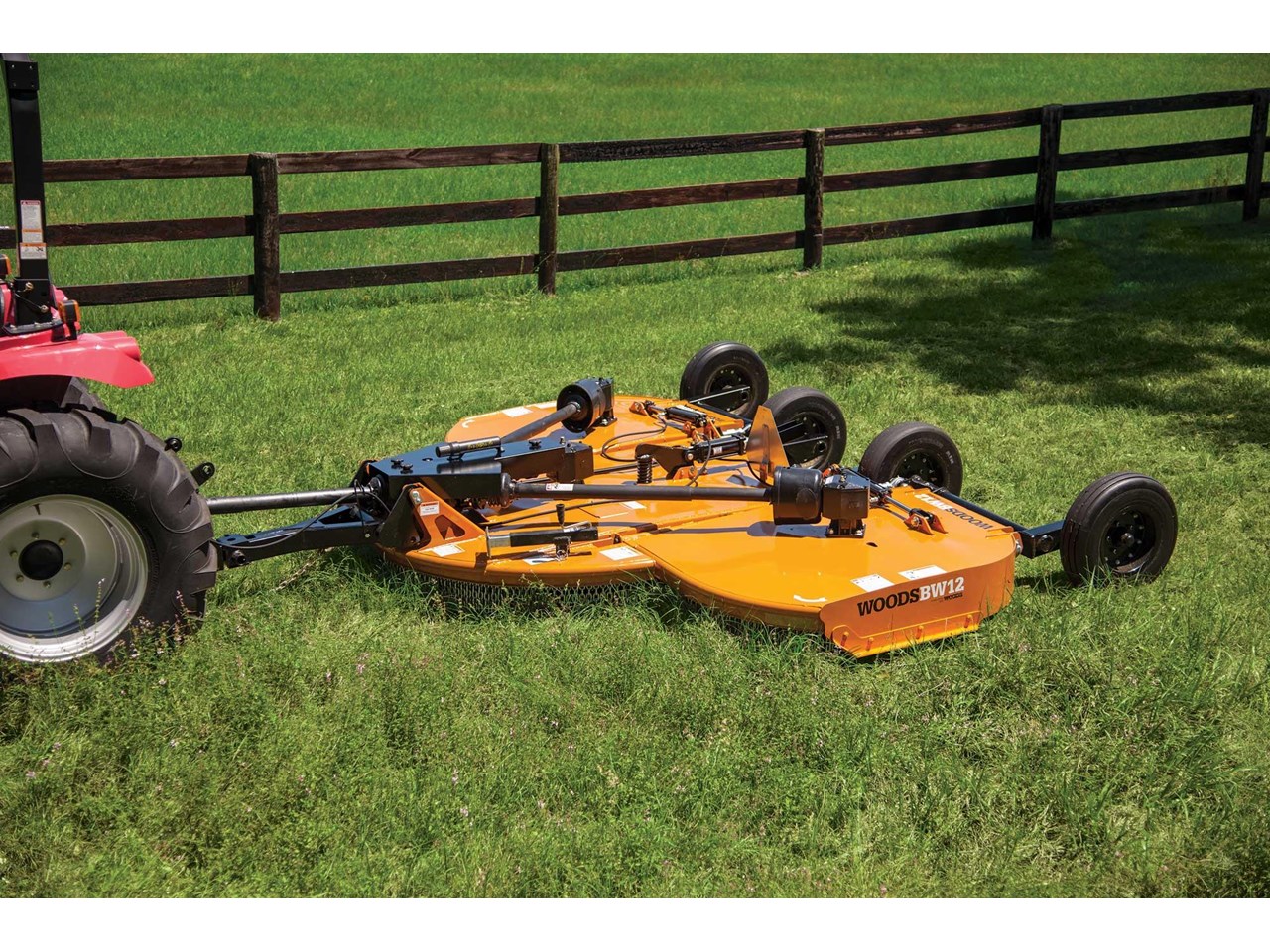

2022 WOODS BW12W Batwing Slasher

Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.

Put our products to the test in your own back yard. Rugged, dependable and productive Woods rotary cutters are designed for the extremes of real world use. No matter if youre cutting brush or mowing pastures, Woods has the rotary cutter to fit your needs.

Woods rotary cutters dedicated to craftsmanship and innovation for more than 60 years.

FEATURES

• The Original Batwing® in a New 12-foot width, designed specifically for compact tractors
• 12-foot Dual-wing cutter for compact/utility tractors
• Main driveline: Cat 4
• Tractor PTO HP: 35 hp minimum
• Cuts brush up to 1.5-inches in diameter
• Side frame depth of 11-inches
• Lighter tongue weight ideal for use on lower horsepower compact and utility tractors
• Fully baffled deck for even distribution and a finer shred
• Standard integrated chain shielding
• Exclusive quick-change pins enable speedy blade changes in the field

Specifications
PTO Horsepower: 35 hp minimum
Tractor hitch: swivel clevis
Cutting width: 12 ft
Cutting height: 2" - 12"
Cutting capacity: 1.5"
Gearbox HP: 160 hp splitter / 75 hp center and wing
Blade tip speed: 14,300 fpm center / 14,900 fpm wing
Deck thickness: 12 gauge, high-strength steel
Side frame thickness: 7 gauge
Deck side depth: 11"
Weight (tongue / total): 750 lbs / 2450 lbs
Blade dimensions: .5" x 4"
Blade overlap: 6"
Flex wing: 90° up, 22° down
Tires: foam-filled aircraft
Suspension: spring on center section
PTO driveline: Main - Cat 4 / Wing - Cat 3
Cutting area shielding: standard chain shielding
Warranty: Gearbox - 5 year limited

TISCA are the national distributor for Woods Equipment, contact us today for more information on this product.
