Title 2020 TELESTACK HF-520 20M HOPPER FEEDER / FEED LOADER CONVEYOR
Make TELESTACK
Sale Price POA
Hire Rate POA
Listing Type New
Stock Number S504
RefCode TA986680
Operator Available No
Transport Available No

Description

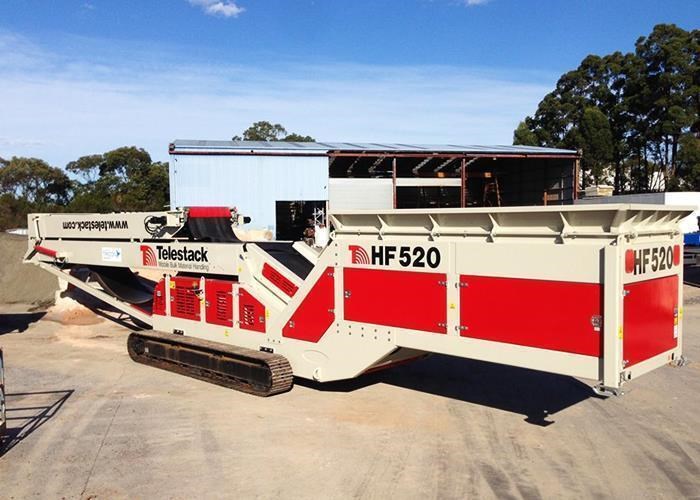

TELESTACK HF-520 HOPPER FEEDER CONVEYOR

The Telestack HF520 Hopper Feeder is a track-mounted fully mobile conveyor designed to work at production rates of up to 500 tonnes per hour. Telestacks hopper feeder range is designed to be loaded directly from wheel loaders, grab cranes, excavators etc.

Hopper Feeders can be used to stockpile material, feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on site. Hopper Feeders eliminate double handling of material which reduces overall costs for the operator.


TECHNICAL INFORMATION
Main Conveyor Length - 20m (65ft)
Conveyor Belt Width - 1050mm (42")
Hopper Width - 2.1m
Hopper Length - 4.4m
Feed-in Height - 2.9m
Hopper Capacity - 7m³
Stockpile capacity at 24º = 1,214m³

HF-520 HOPPER FEEDER FEATURES
  • Production rates of up to 800tph (upgraded)
  • Reduces fuel cost by up to 75%.
  • Reduces operating cost by up to 70%
  • Heavy duty design and manufacture.
  • Unrivalled mobility and flexibility when in operation.
  • Increased safety as no need to stockpile with wheel loaders.
  • Reduces screener idle time increasing production.
  • Reduces face excavator idle time increasing production.
  • The range of hopper capacities depending on application and production rate.
  • The hydraulic folding head section allowing for compact road transportation.
  • Can be packed into 40ft containers for easy, cost-effective transport around the globe.
  • Reducing loading shovel movements which reduce operating cost and improves safety.
  • High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.

ADDITIONAL INCLUSIONS
  • E stops
  • Battery isolator
  • Fire extinguisher
  • 1050mm belt upgrade
  • Twin drives on feeder
  • Twin drives on main conveyor
  • Hot climate package (dual oil coolers)
  • 700mm hopper extensions / 12m3 hopper
  • Upgrade to 2 x hydro jack legs at rear of hopper
