SCHULTE 5024 ROTART CUTTER
Finance Estimate
Get my Online Quote »
* # View disclaimer
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300
STRATTON (1300 787 288).
Finance Estimate
Get my Online Quote »
* # View disclaimer
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300
STRATTON (1300 787 288).
Contact Seller
Features
| Title | SCHULTE 5024 ROTART CUTTER |
| Type | Machinery Attachments |
| Sub Type | Slashers |
| Make | SCHULTE |
| Model | 5024 ROTART CUTTER |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | SCH-001 |
| RefCode | TA1272895 |
| Cutting Width - mm | 0 |
| Power Rating - kW | 0 |
| PTO Drive - RPM | 540 |
Description

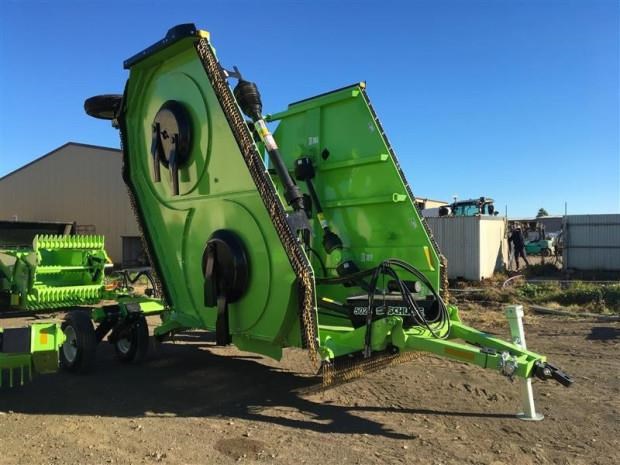

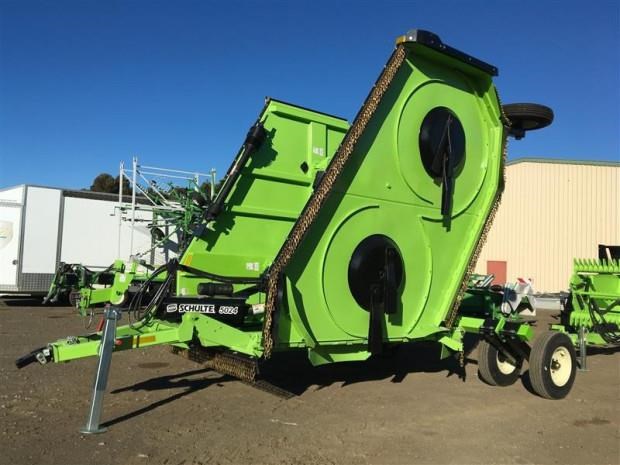

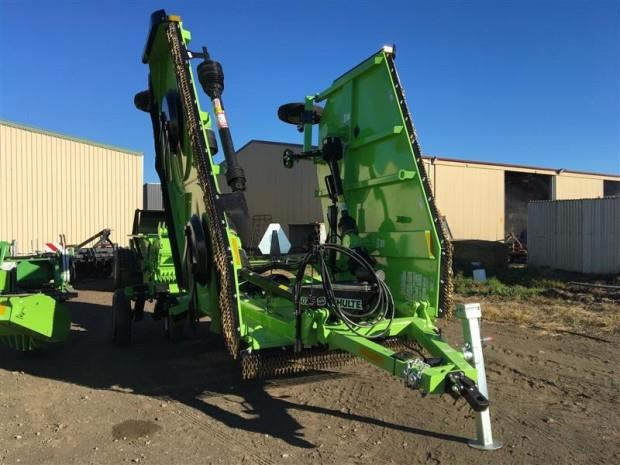

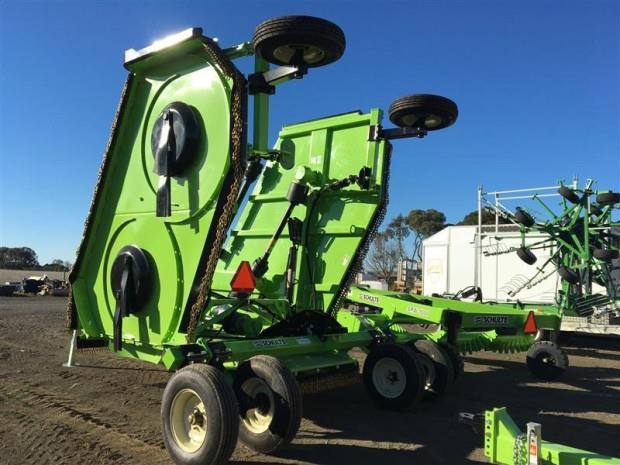

24' Rotary Cutter. 1000 PTO drive. 5 rotors. 260 & 190HP gearboxes with
independent slip clutches so nothing needs to be timed. 3 section, 10-gauge
domed deck with folding & floating 7-gauge wings. Stump-jump pans. Single
updraft blades. 2 cutting capacity. Deck protection rings. Hydraulic level lift.
Single safety chains and half rubber flaps front & rear. Dual wheels in centre
and single wheels on wings with pneumatic tyres.
SPECIFICATIONS AT A GLANCE
Cutting width 7.42 m (24 4)
Overall width 7.75 m (25 5)
Overall length 5.13 m (17 1)
Transport width 2.98 m (9 9)
Transport height 3.56 m (11 8)
Weight 3583 kg
Minimum tractor HP 120 HP (90 kW)
Tractor PTO speed 1000 RPM
Cutting height 25mm to 356mm (1 to 14)
Cutting capacity 51 mm (2")
Divider gearbox rating 260 HP (194 kW)
Centre & wing gearbox rating 190 HP (142 kW)
Wing working range 15 down to 45 up
independent slip clutches so nothing needs to be timed. 3 section, 10-gauge
domed deck with folding & floating 7-gauge wings. Stump-jump pans. Single
updraft blades. 2 cutting capacity. Deck protection rings. Hydraulic level lift.
Single safety chains and half rubber flaps front & rear. Dual wheels in centre
and single wheels on wings with pneumatic tyres.
SPECIFICATIONS AT A GLANCE
Cutting width 7.42 m (24 4)
Overall width 7.75 m (25 5)
Overall length 5.13 m (17 1)
Transport width 2.98 m (9 9)
Transport height 3.56 m (11 8)
Weight 3583 kg
Minimum tractor HP 120 HP (90 kW)
Tractor PTO speed 1000 RPM
Cutting height 25mm to 356mm (1 to 14)
Cutting capacity 51 mm (2")
Divider gearbox rating 260 HP (194 kW)
Centre & wing gearbox rating 190 HP (142 kW)
Wing working range 15 down to 45 up
