2020 PORTAFILL MR-2 RECLAIMER SCREEN
Price:
POA
Report Listing
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Contact Seller
| Title | 2020 PORTAFILL MR-2 RECLAIMER SCREEN |
| Make | PORTAFILL |
| Price | POA |
| Listing Type | New |
| Stock Number | S598 |
| RefCode | TA1058759 |
2020 PORTAFILL MR-2 RECLAIMER SCREEN

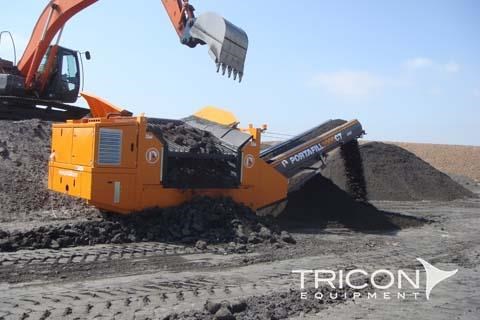

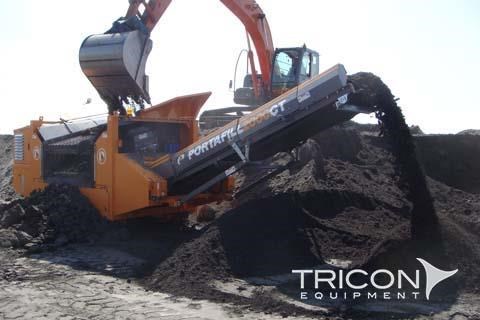

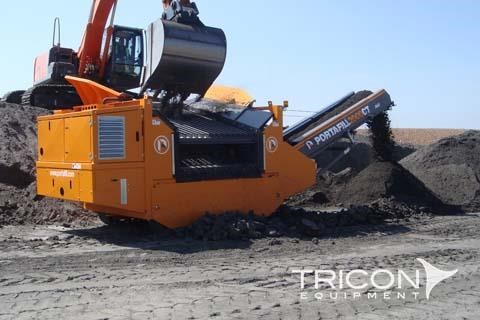

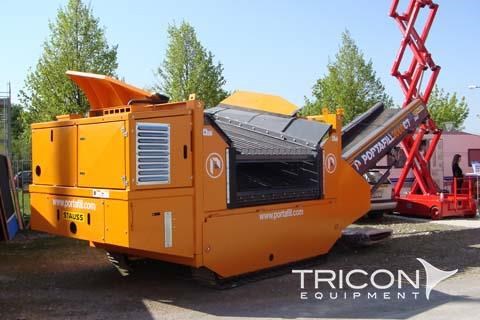

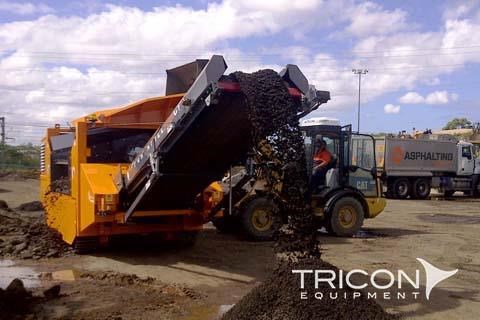

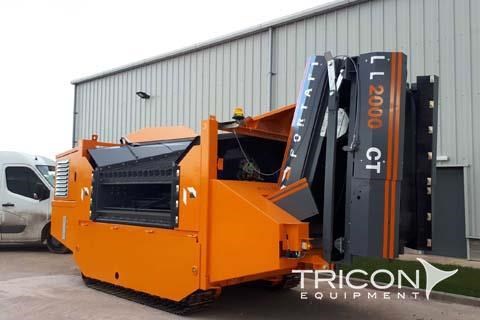

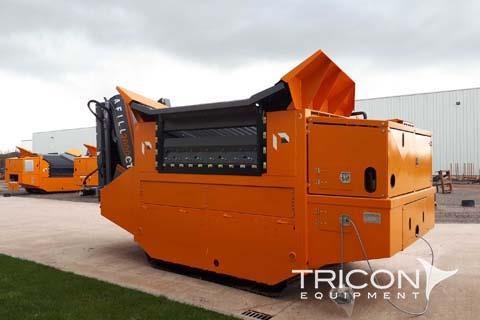

The Portafill MR-2 is an easy to operate, compact, portable and highly reliable screening plant. Specifically designed for ease of use, with a small to a medium-sized contractor in mind. The MR-2 can be operational moments after arriving on site.
FEATURES
SCREEN BOX
CONVEYOR
POWER
SECOND CONVEYOR
TRANSPORT
ABOUT TRICON EQUIPMENT
Tricon Mining Equipment is the leading dealer of Crushing and Screening machinery throughout Australia.
We provide:
Give the Tricon team a call or complete the form to make an enquiry.
For more details and brochures head to our website www.triconequipment.com.au
Keywords: Scalping Screen, Scalping Screener, Scalper Screen, Scalper Screener, Reclaimer Screen, Reclaiming Screen, Vibratory Screen, Screener, Screen, Mobile Scalper, Mobile Screener, Mobile Screen, Screen Plant, Screener Plant, Screening Machine, Screener Machine, Mobile Sizer, Sizing Screen, Material Screen, Rock Screen, Bulk Materials Screener, Screen Equipment, Screener Equipment, Screening Equipment
The Portafill MR-2 is an easy to operate, compact, portable and highly reliable screening plant. Specifically designed for ease of use, with a small to a medium-sized contractor in mind. The MR-2 can be operational moments after arriving on site.
FEATURES
- Tracked undercarriage for ease of movement
- Wired or radio-tracking control
- Heavy-duty two-deck grizzly
- Wide main conveyor for high output
- Simple operation
- Optional middle product conveyor
SCREEN BOX
- Screen Box Type: Bolted, 2 Deck, 2 Bearing Screen
- Overall Screen Box Size: 2780 (92) x 2475 (82) Screen Box
- Top Deck Options: Tapered Grizzly, Finger Screen and Top Deck Frame with Punch Plate or Woven Mesh
- Maximum Feed Size:400mm (depending on material)
CONVEYOR
- Belt Width: 900mm (36)
- Discharge Height: 2617mm (86)
- Folding Mechanism: Hydraulic folding for transport
- Belt Type: Smooth (Fully Skirted)
POWER
- Engine: Deutz D2011 L04I (EPA Tier 3) 36kw (49HP)
- Engine: Deutz TCD2.2 L3 (EU Stage V, EPA Tier 4) 55kw (74HP)
- Fuel Tank Capacity: 100L
- Hydraulic Tank Capacity: 250L
SECOND CONVEYOR
- Belt Width: 600mm (24)
- Discharge Height: 2443mm (8)
- Folding Mechanism: Hydraulic folding for transport
- Belt Type: Smooth (Fully Skirted)
TRANSPORT
- Width: 2.3m (76)
- Length: 6m (1911)
- Height: 3m (99)
- Weight kgs (Approx): 10,000kgs
- Weight lbs (Approx): 22,000lbs
ABOUT TRICON EQUIPMENT
Tricon Mining Equipment is the leading dealer of Crushing and Screening machinery throughout Australia.
We provide:
- New, Used & Ex-Demo machines available for sale and hire.
- 12 months manufacturers warranty on NEW machines.
- Discounted pricing on USED / EX-DEMO machines AUSTRALIA-WIDE (subject to stock).
- After-sale service.
- Spare parts.
- Servicing & support.
Give the Tricon team a call or complete the form to make an enquiry.
For more details and brochures head to our website www.triconequipment.com.au
Keywords: Scalping Screen, Scalping Screener, Scalper Screen, Scalper Screener, Reclaimer Screen, Reclaiming Screen, Vibratory Screen, Screener, Screen, Mobile Scalper, Mobile Screener, Mobile Screen, Screen Plant, Screener Plant, Screening Machine, Screener Machine, Mobile Sizer, Sizing Screen, Material Screen, Rock Screen, Bulk Materials Screener, Screen Equipment, Screener Equipment, Screening Equipment
New | Reclaimer / Scalping Screen | 2.78m x 2.475m Screen | Available Australia-Wide | Manufacturer's Warranty
