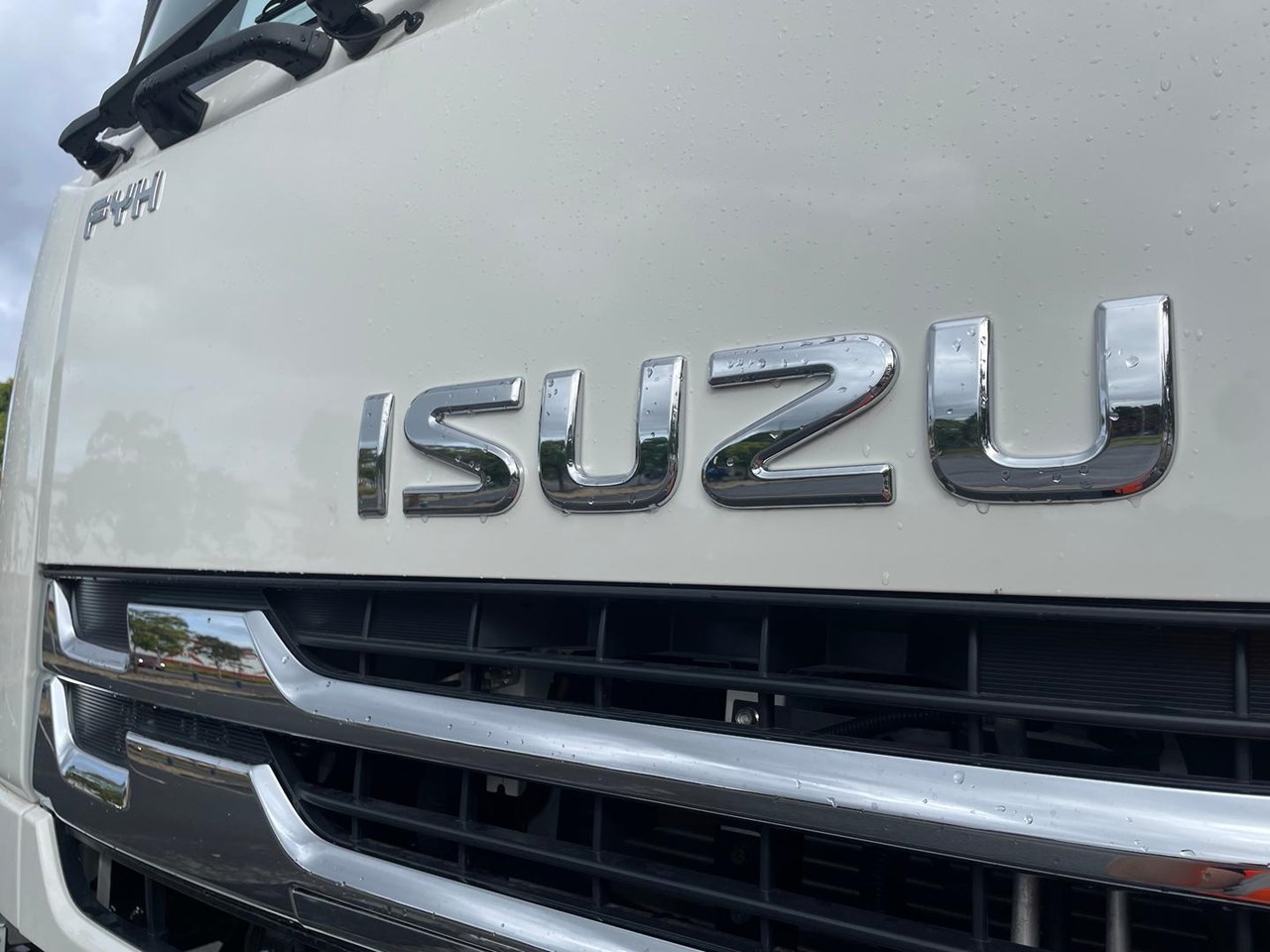

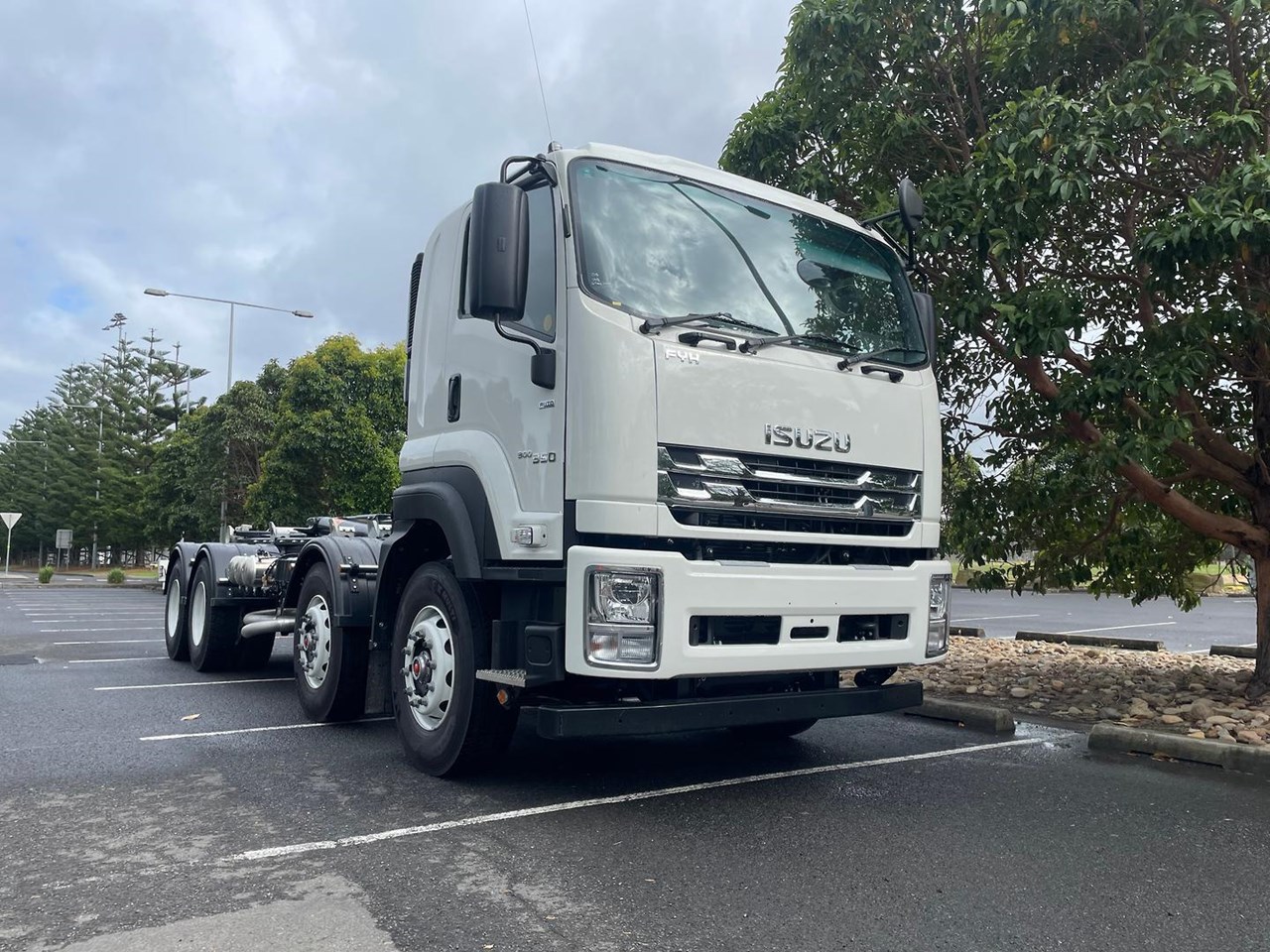

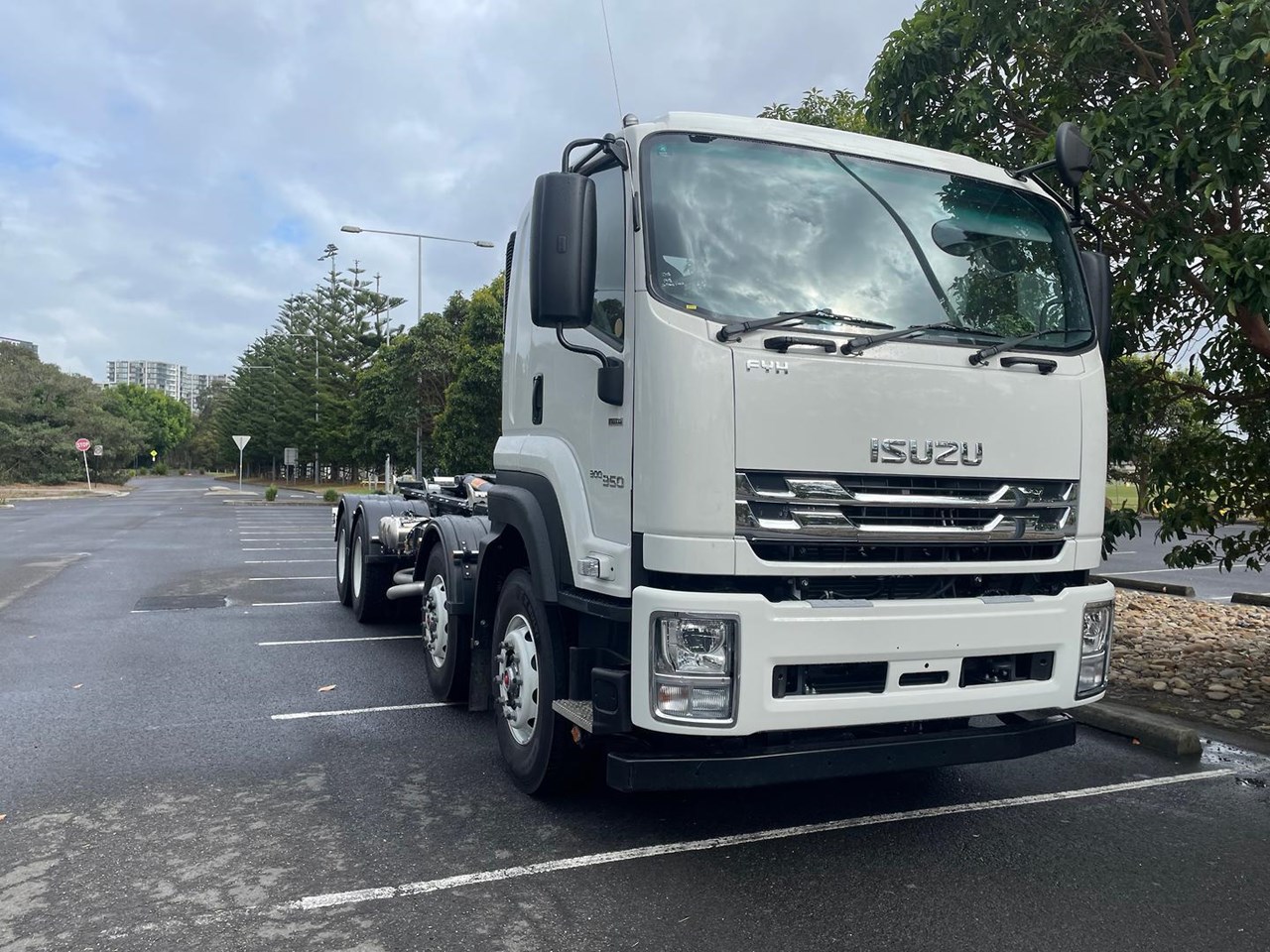

2023 ISUZU F SERIES

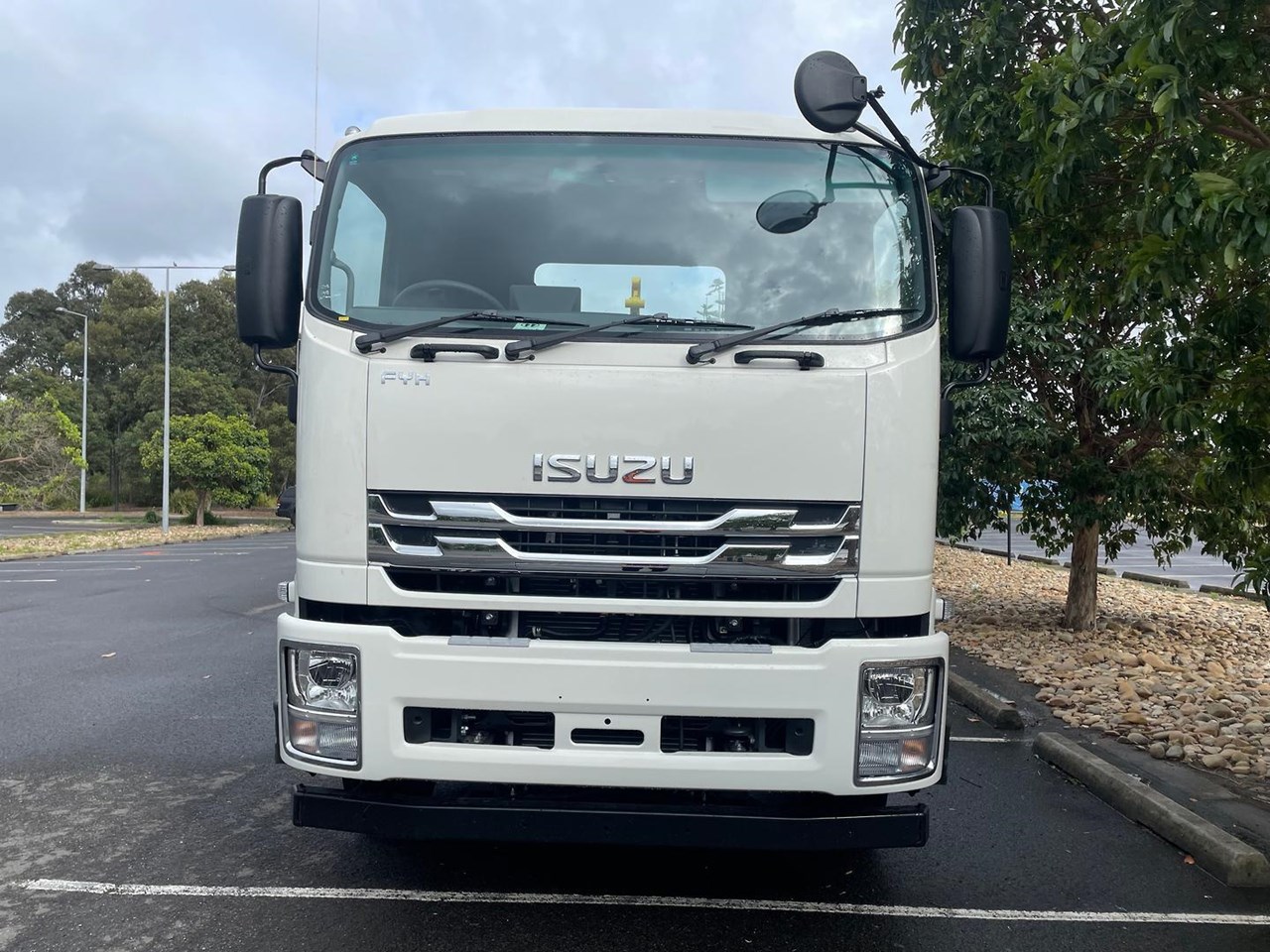

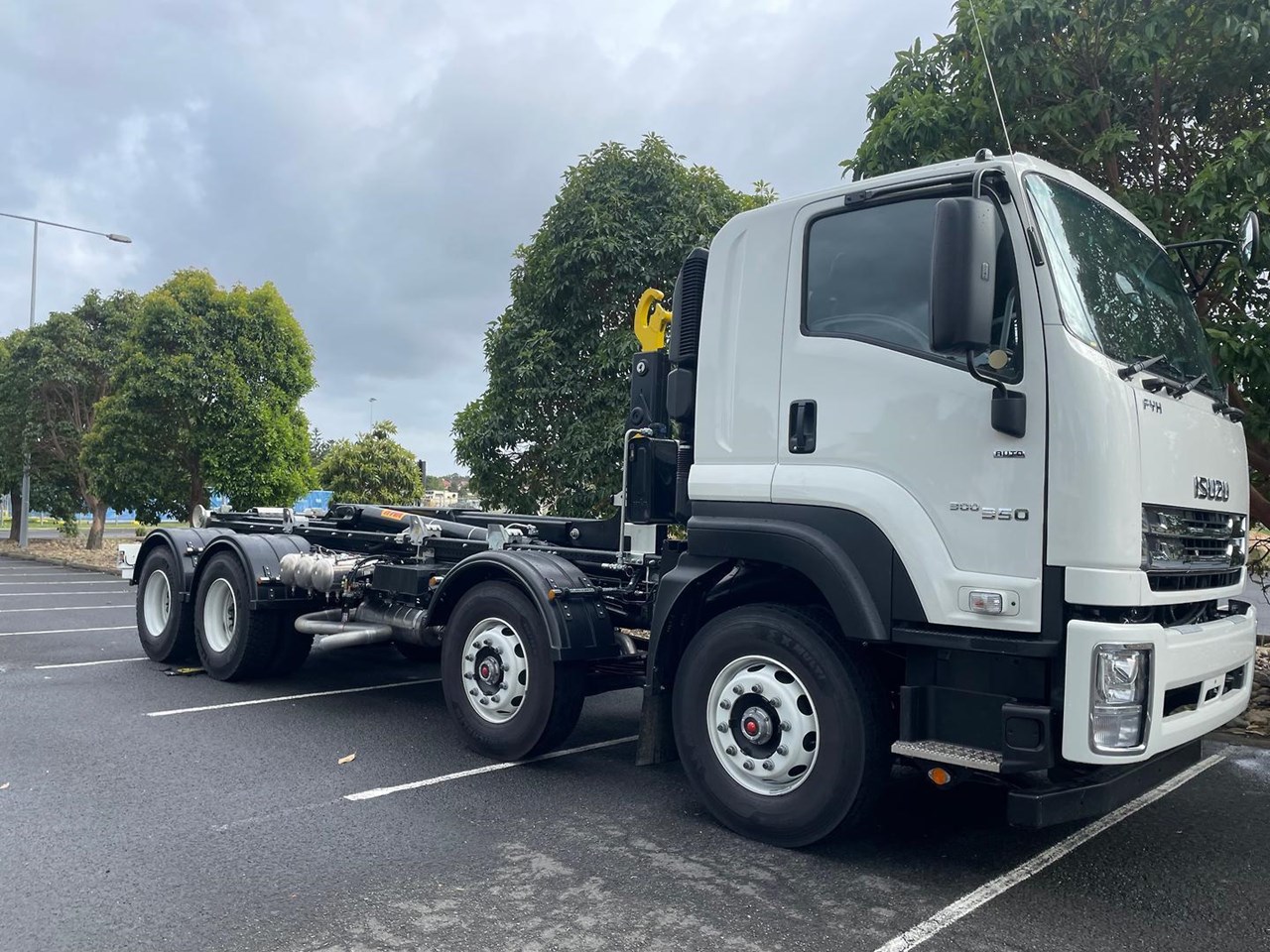

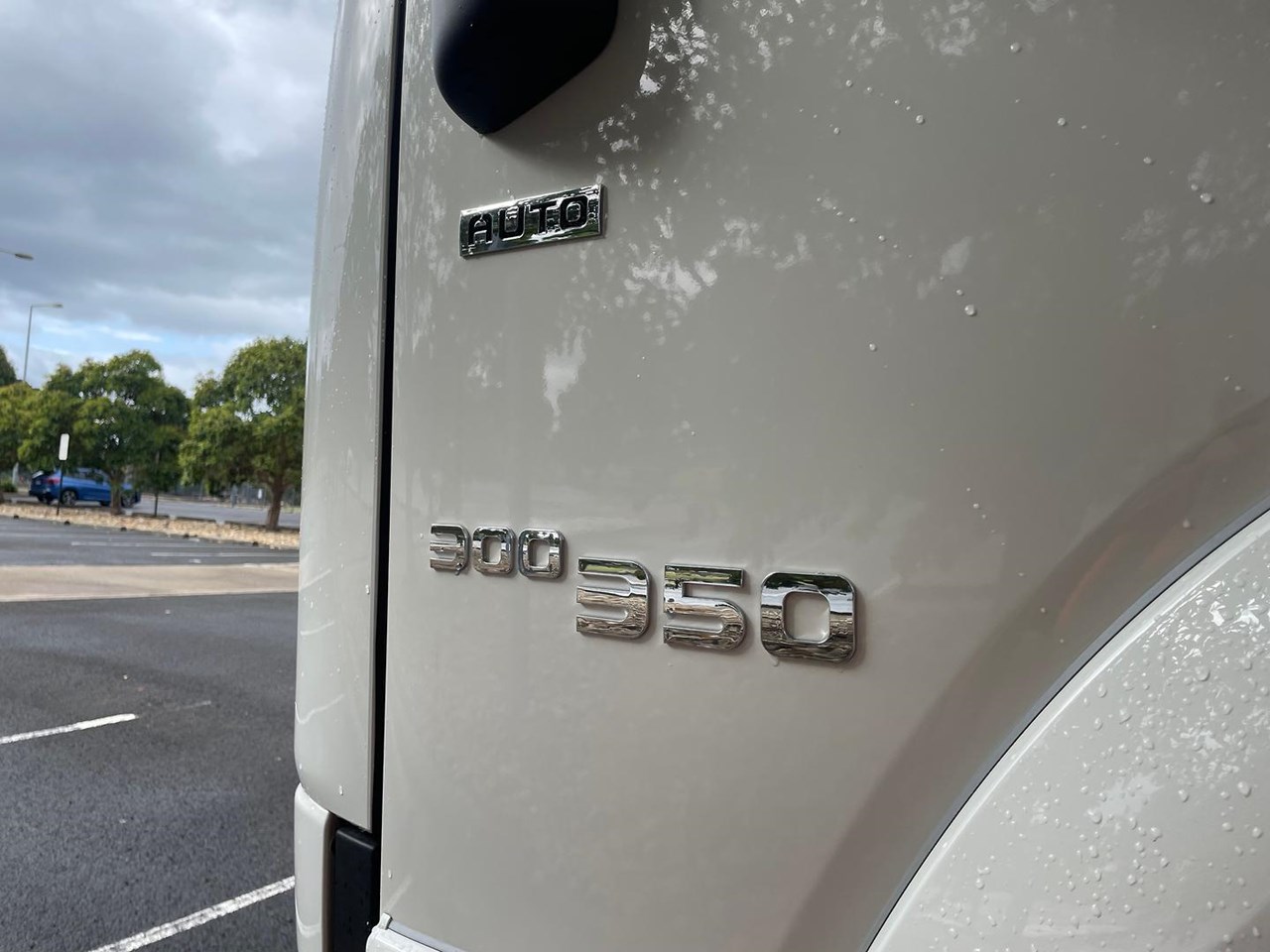

Isuzu FYH 300-350 Auto LWB

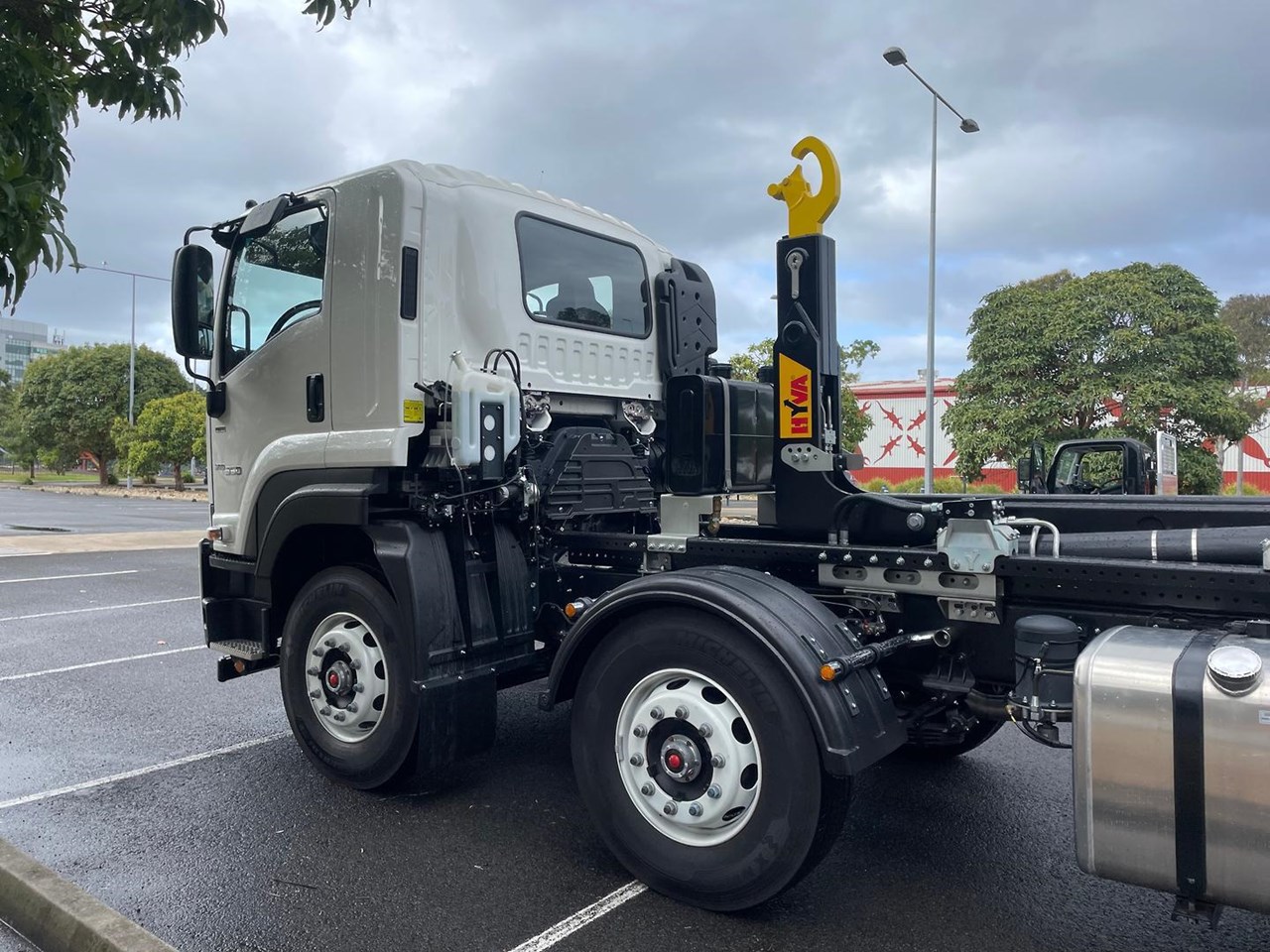

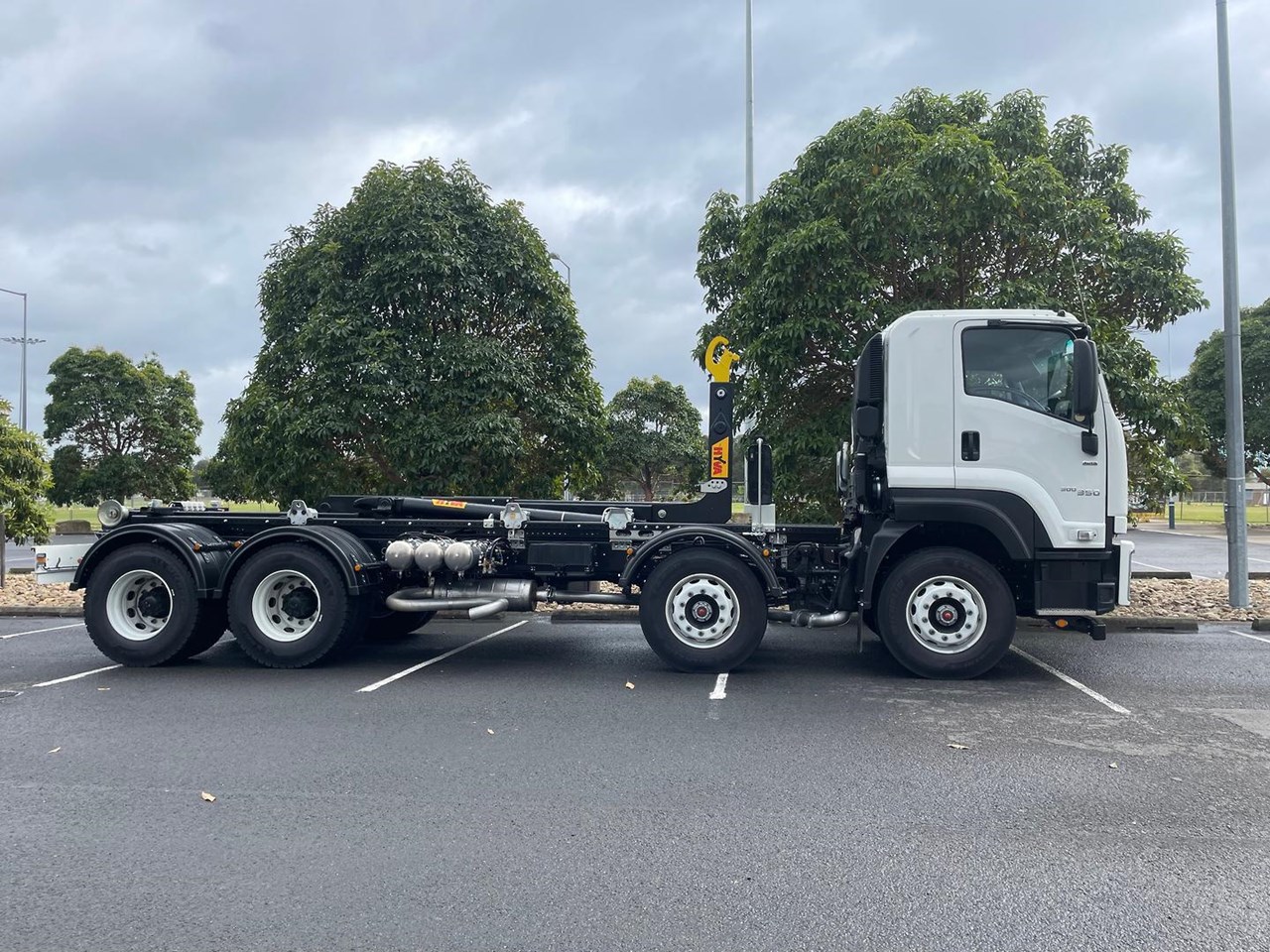

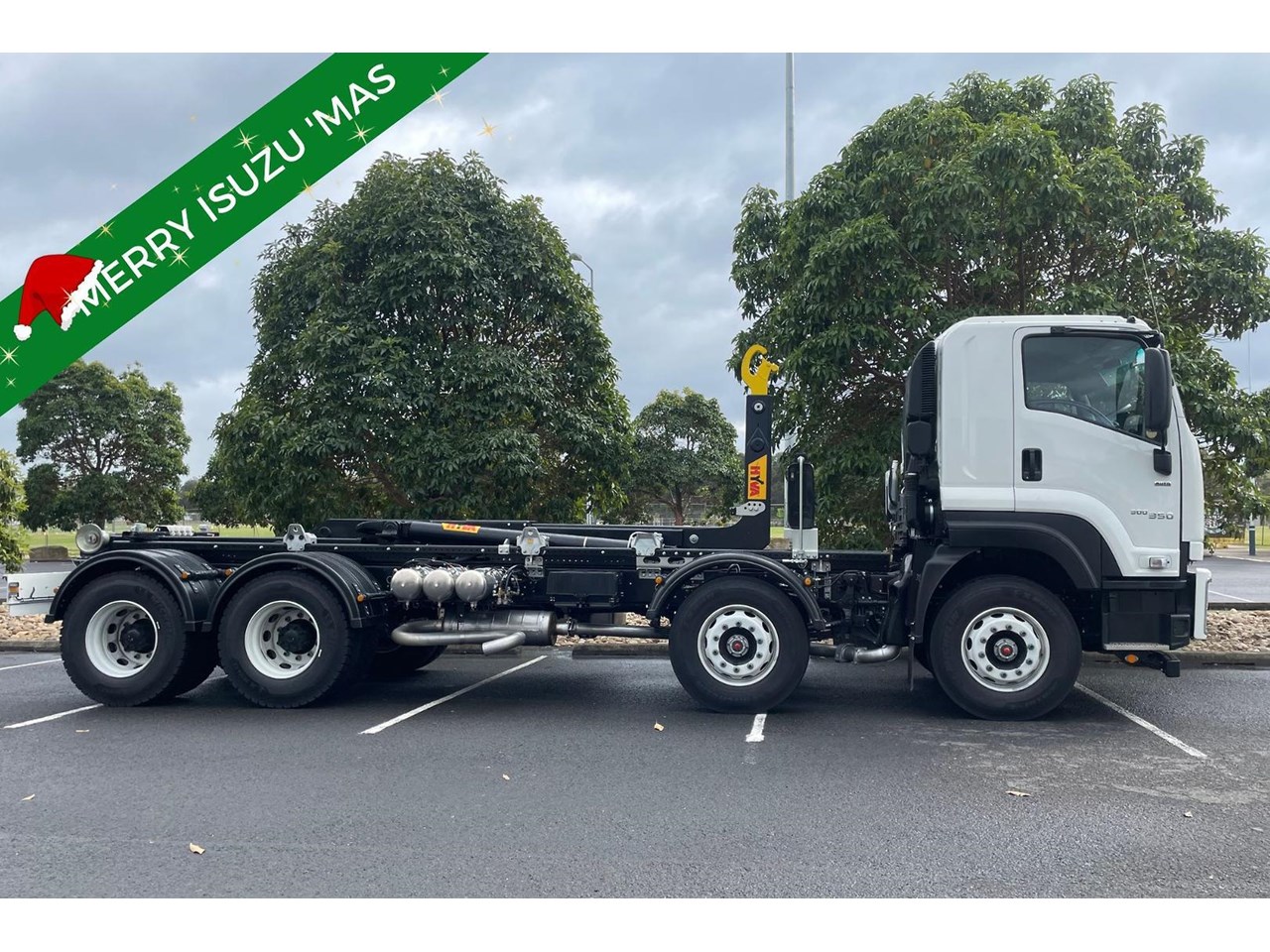

Hyva Lift 20-57-SK TITAN EVO

Truck Specs:
6 Speed Automatic Transmission (Allison 4430)
9.8 L, 6 Cylinder Turbo Diesel (6UZ1)
GVM: 30,000 Kg
GCM: 45,000 Kg
Power: 350 Hp | 257 kW @ 2,000 RPM
Torque: 1,422 Nm @ 1,400 RPM

Body Details:
? Capacity 20 Tonne
? System length 5700mm
? Fitted weight of 3000 kg approximately
? To suit bin rails of 865mm (inside) - 1060mm (outside)
? To suit bin lengths of 3550 - 6800 mm.
? High Strength Hardox and Weldox Steel frame with a low height of 250mm from bottom of
frame to where the bin sits. Ensures low centre of gravity for the bin.

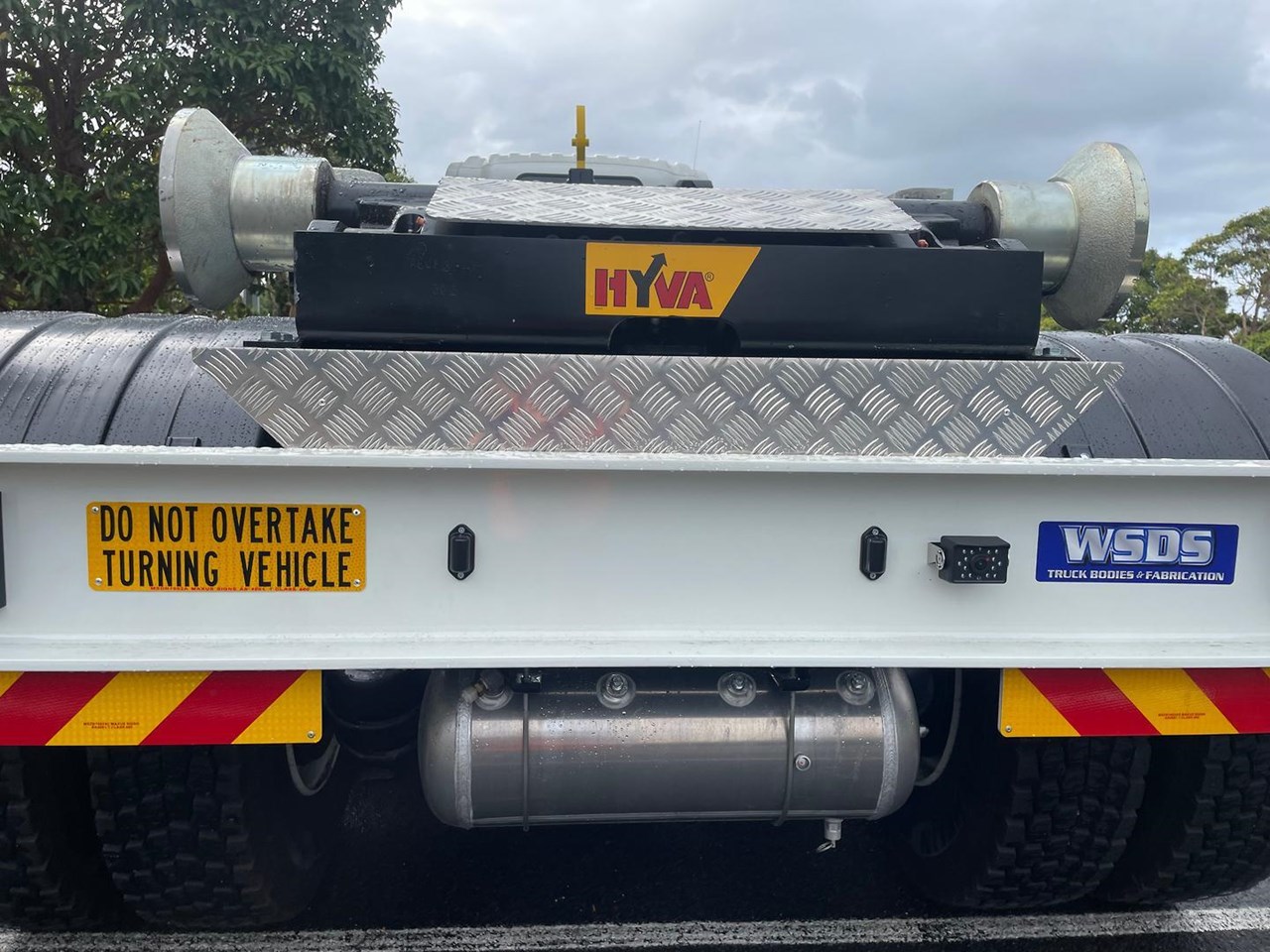

? Combi Lock hydraulic reversible rear bin locking

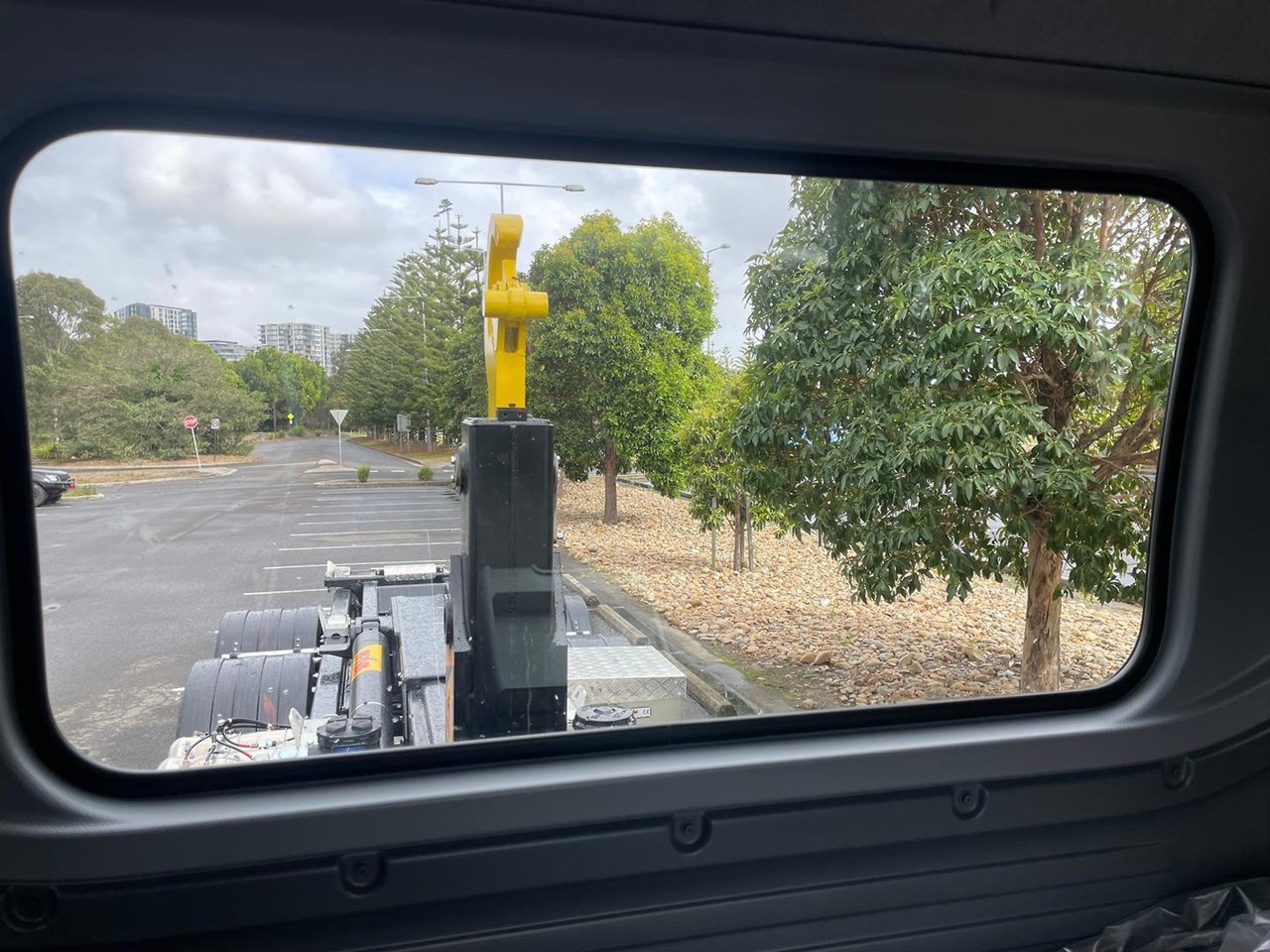

? Manually adjustable 2 height pick up hook 1450 & 1570 mm.
? Rollers on the midsection of the Frame to allow for Smooth and quiet container (un)loading

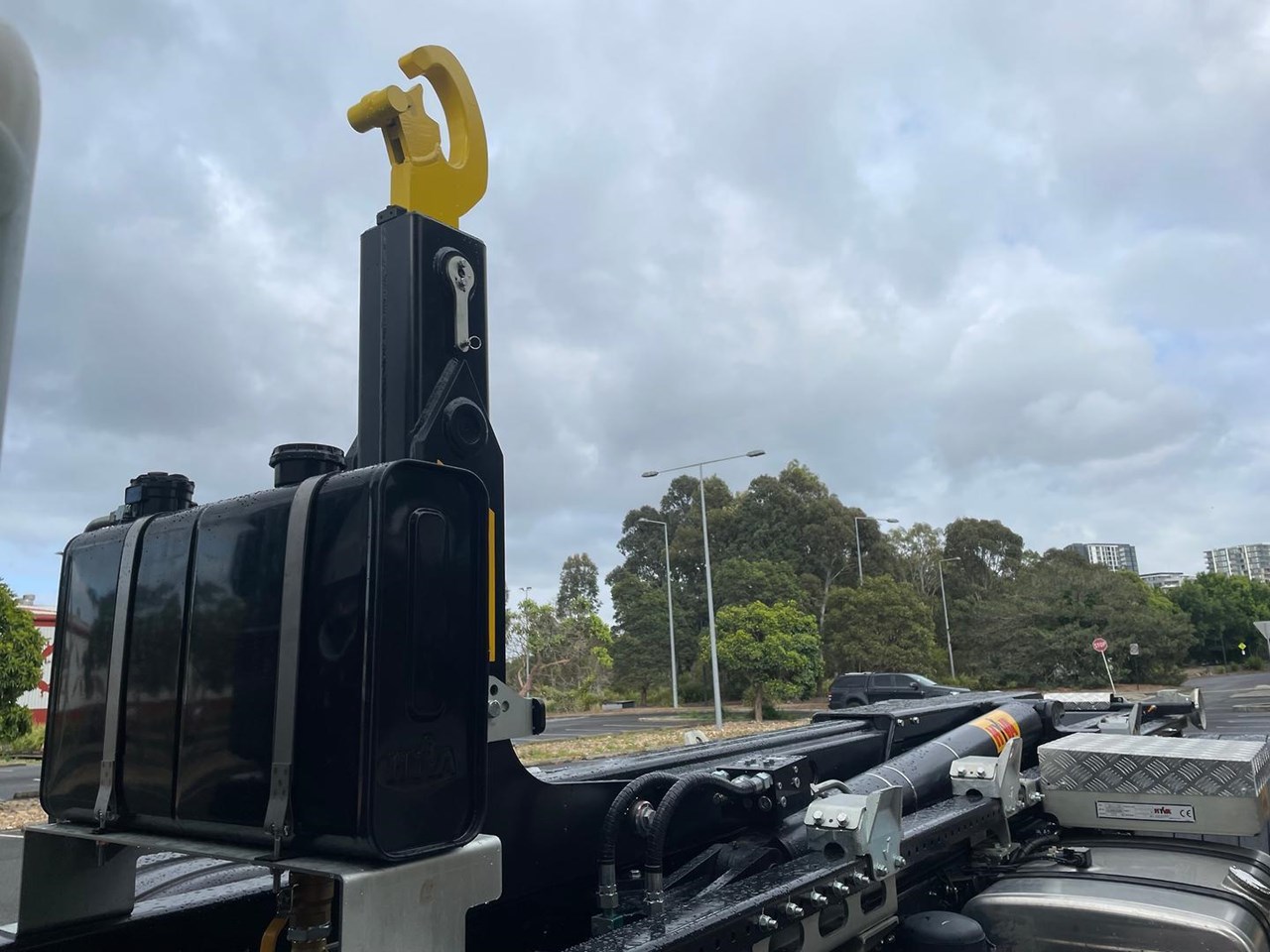

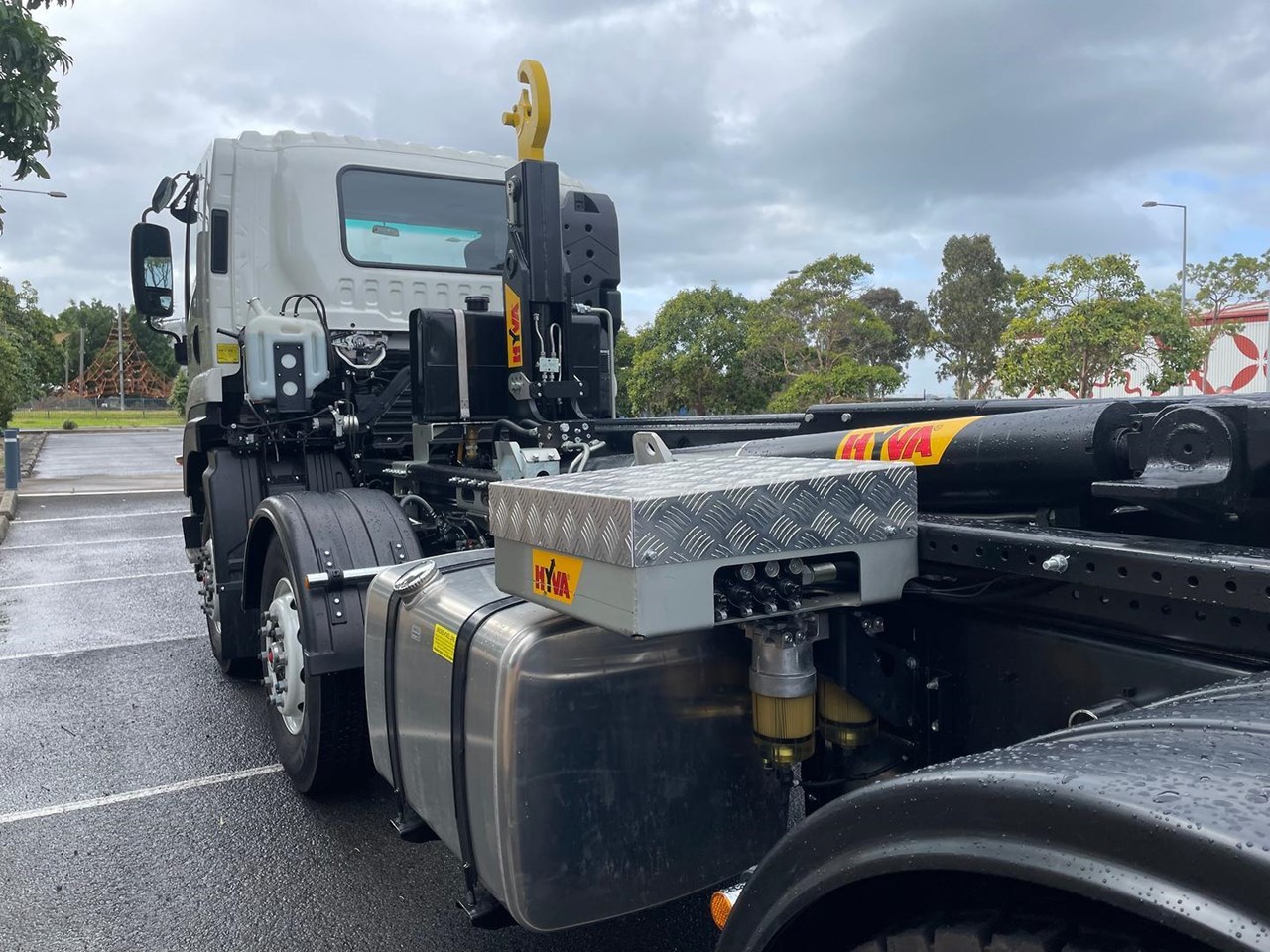

? Front Mounted Steel Hydraulic Oil tank 81 Litre Capacity with return filter and breather.
? Warning Lights for Body Raised and Rear Locks
? LED Side Marker lights fitted

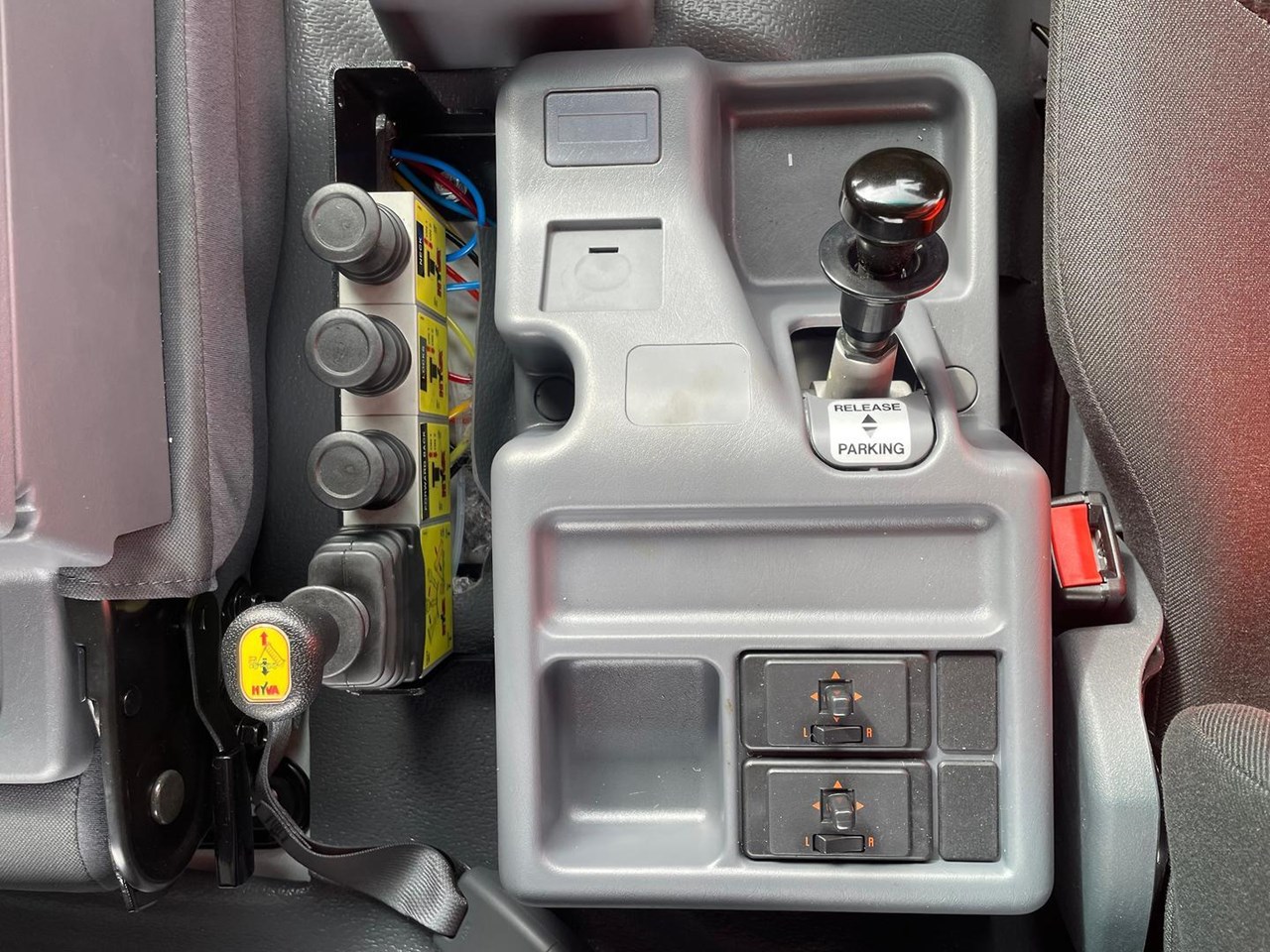

? Air operated in cab lever Controls with 4 functions - Sliding Neck, Bending Neck, Tipping
Frame and Rear Locks.
? Space for Optional Electro/Hydraulic Hyva tarp system to be fitted.
? Equipment Painted in Black colour with Yellow pick up hook.
? High Pressure Piston Pump to suit Live Drive PTO to ensure less wear and tear and longer life
span than gearbox driven PTO option.

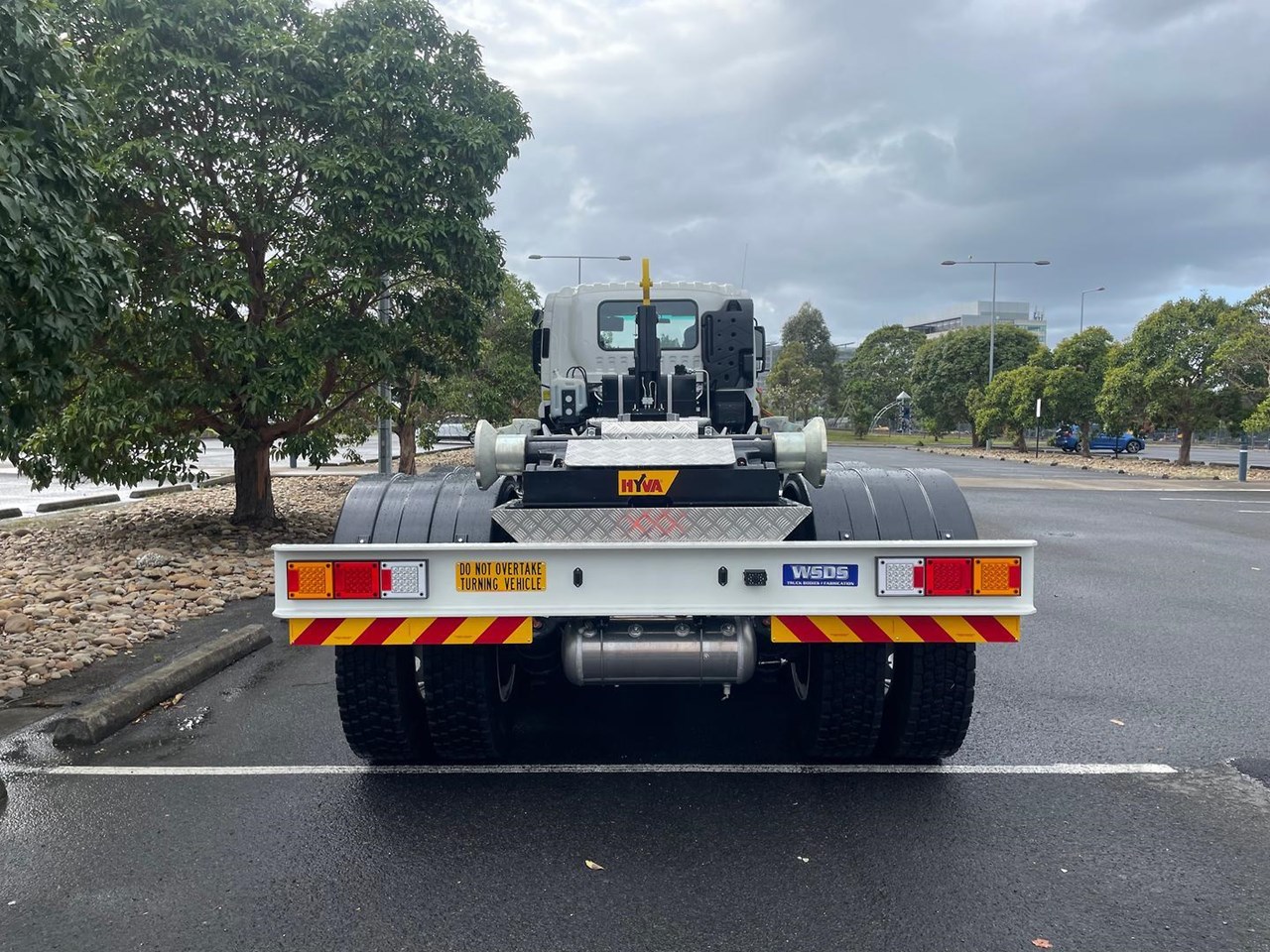

? Rear Light Guards and marker boards fitted
? Plastic single mudguards to 2nd steer and Rear Axles

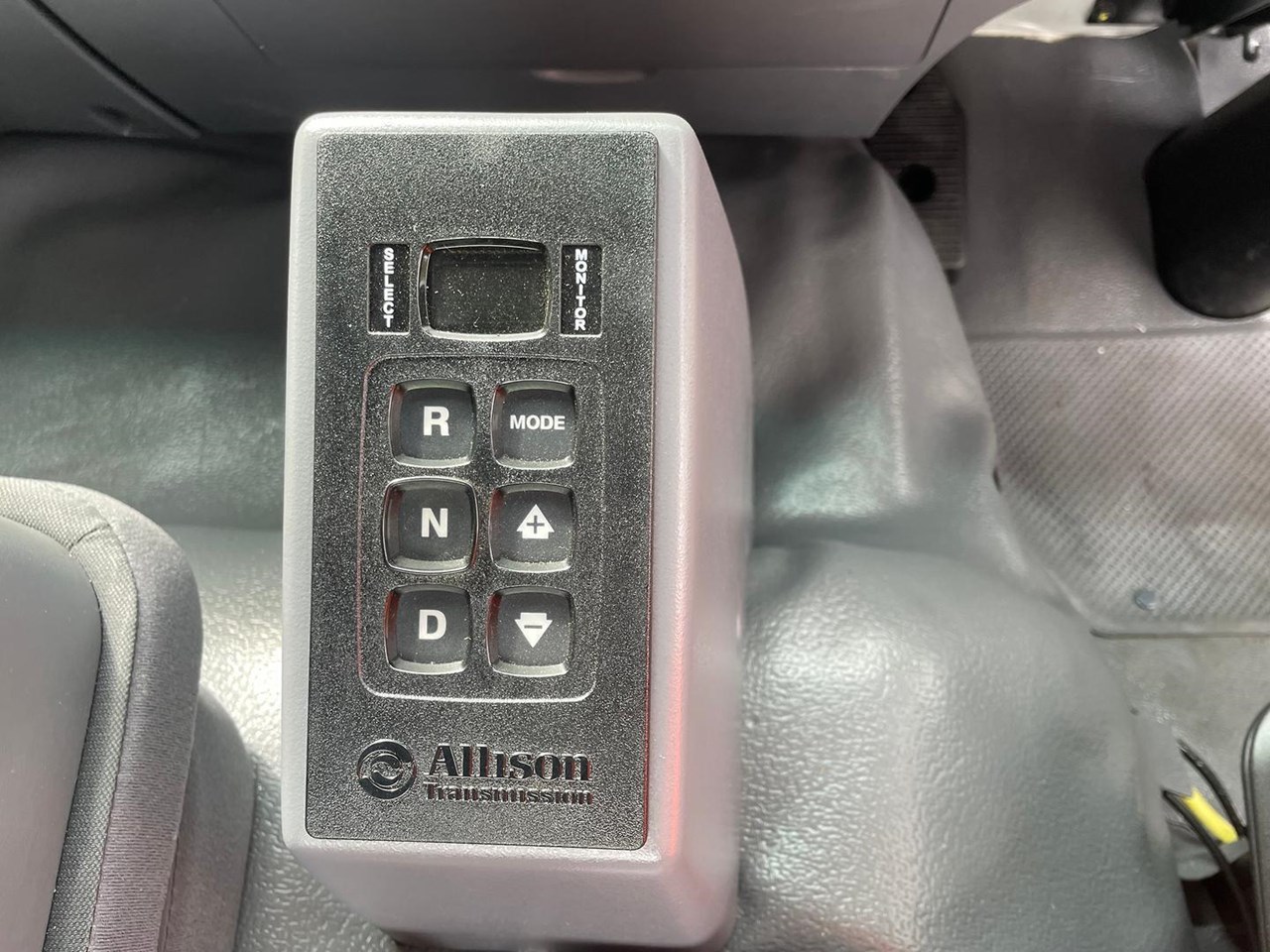

? Allison gearbox (hot shift PTO)

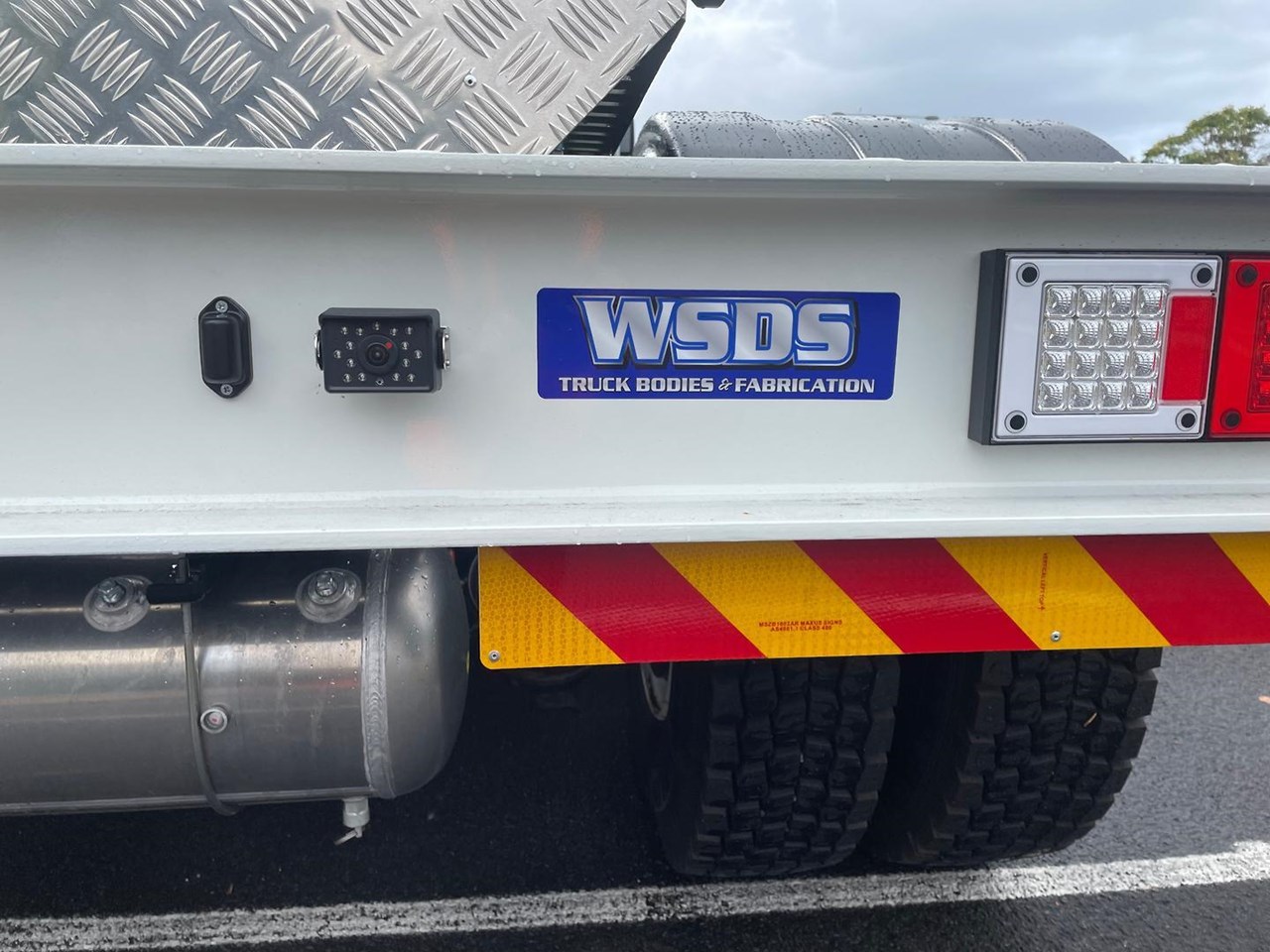

? Rear LED lights

Standard Features:
Anti-Lock Braking System (ABS)
Driver Airbags Driver Seatbelt Pre-Tensioners
ECE-R29 Compliant Cab
ADR 42 Compliant Sleeper with Mattress
ADR 80/03 Euro V / EEV Compliant
Emissions: Exhaust Diesel Oxidation Catalyst (DOC)

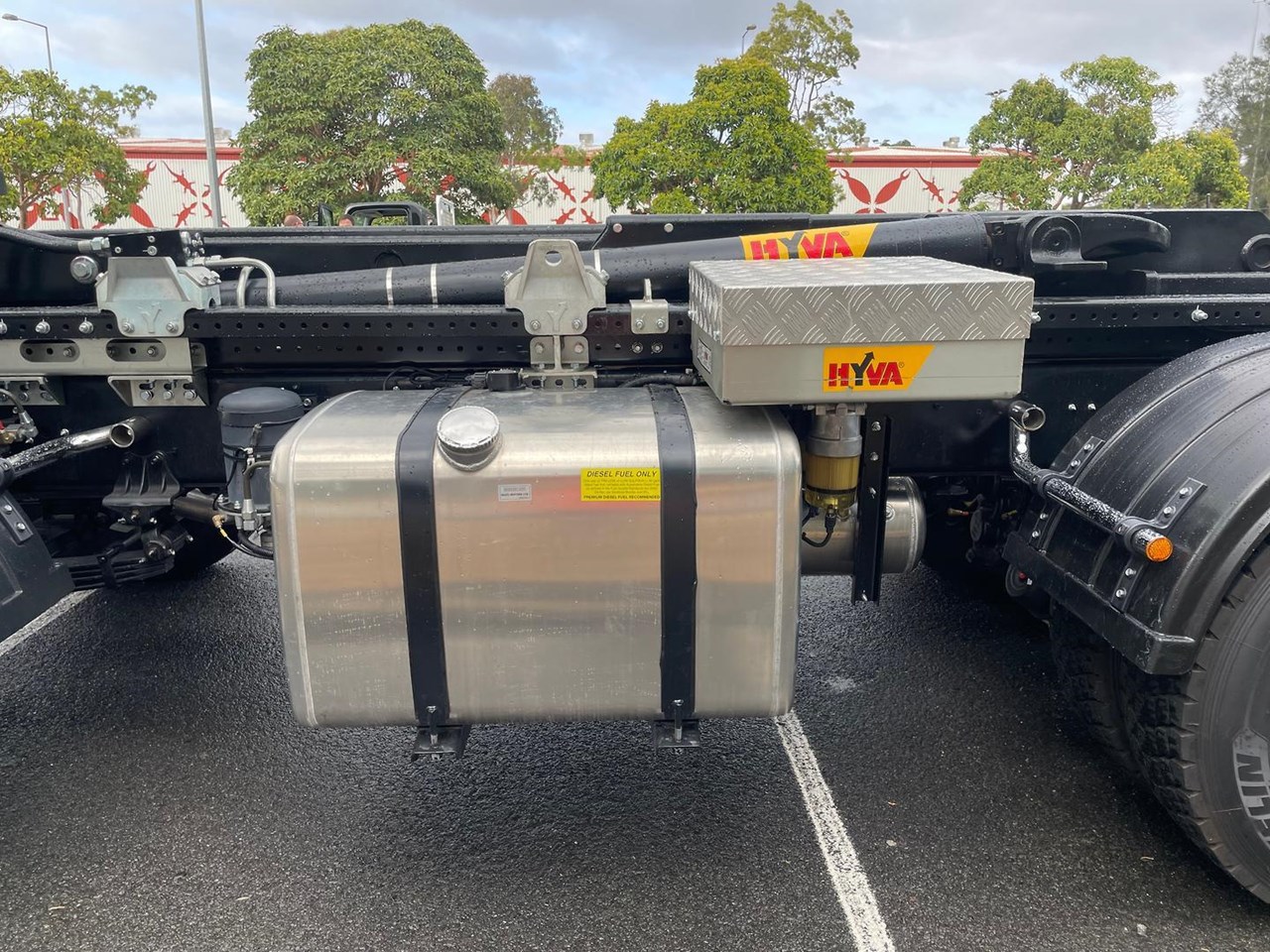

400L Frame Mounted Lockable Steel Fuel Tank

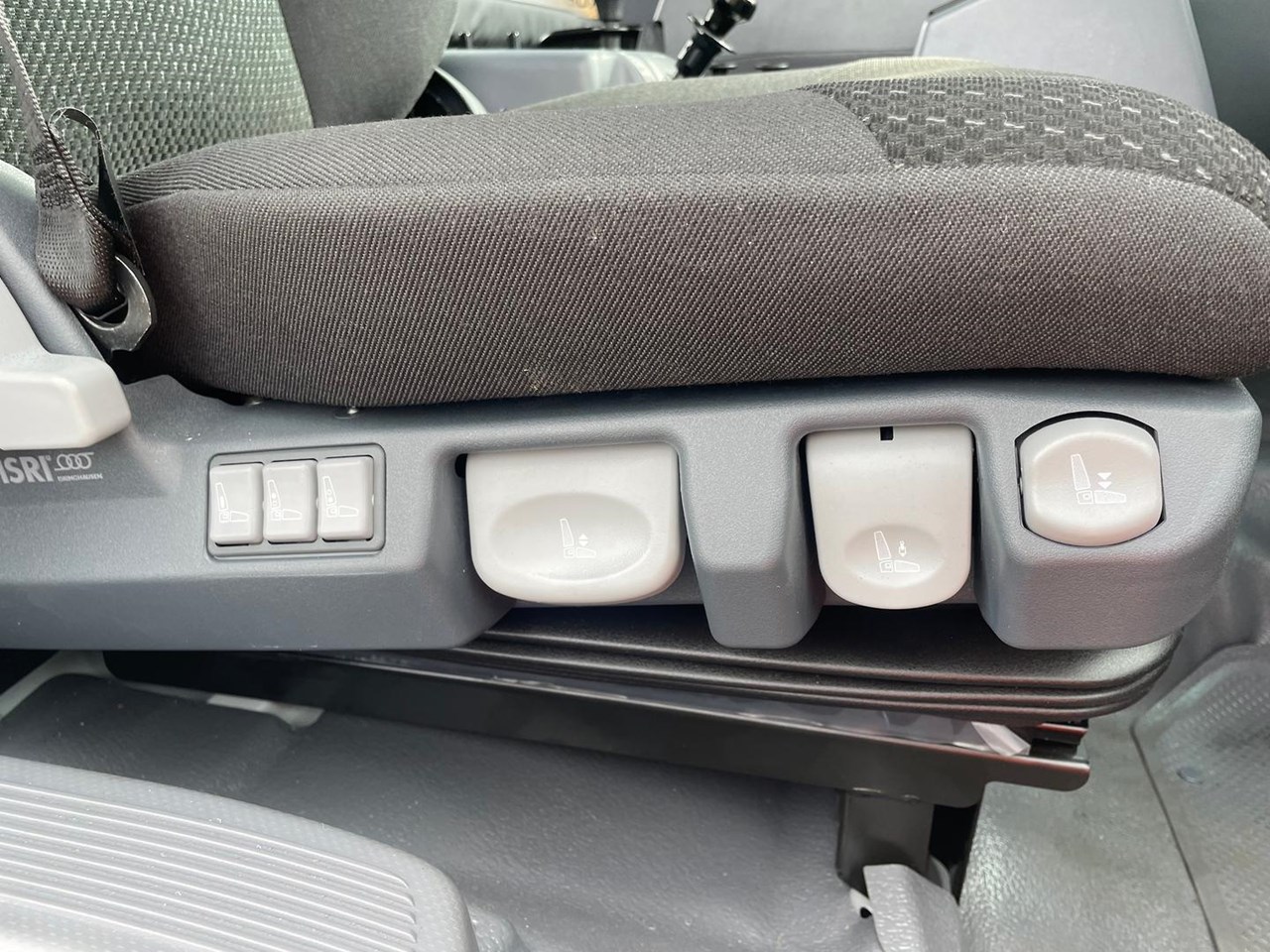

Drivers ISRI 6860/875 NTS Air Suspension Seat

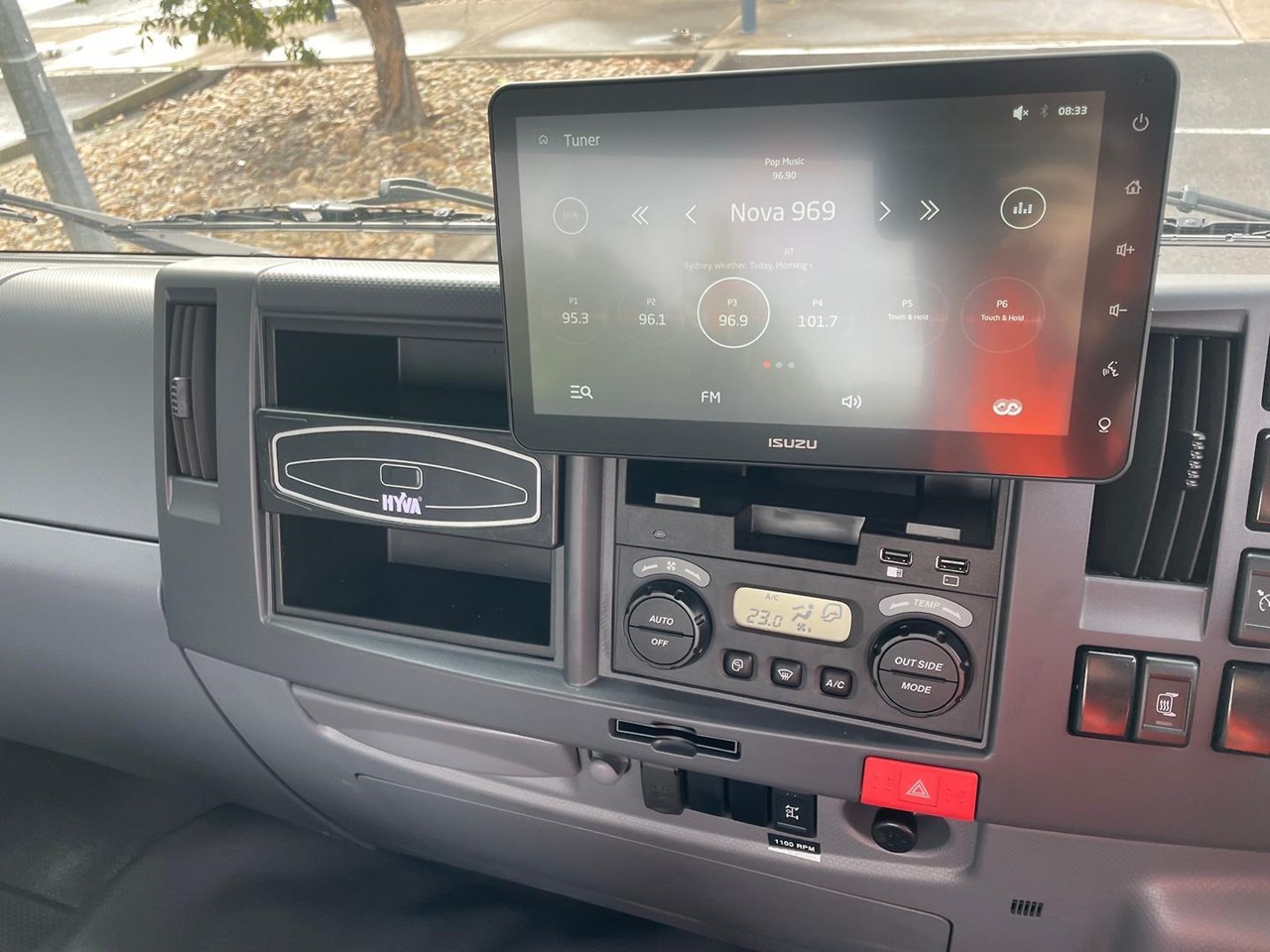

10.1 1080p High-Definition Audio Visual Unit with Capacitive Touch
Truck Tailored GPS Based System
Android Auto / Apple CarPlay Compatible
USB 3.0 Socket
