2021 HYDRAPOWER 81SSU1800

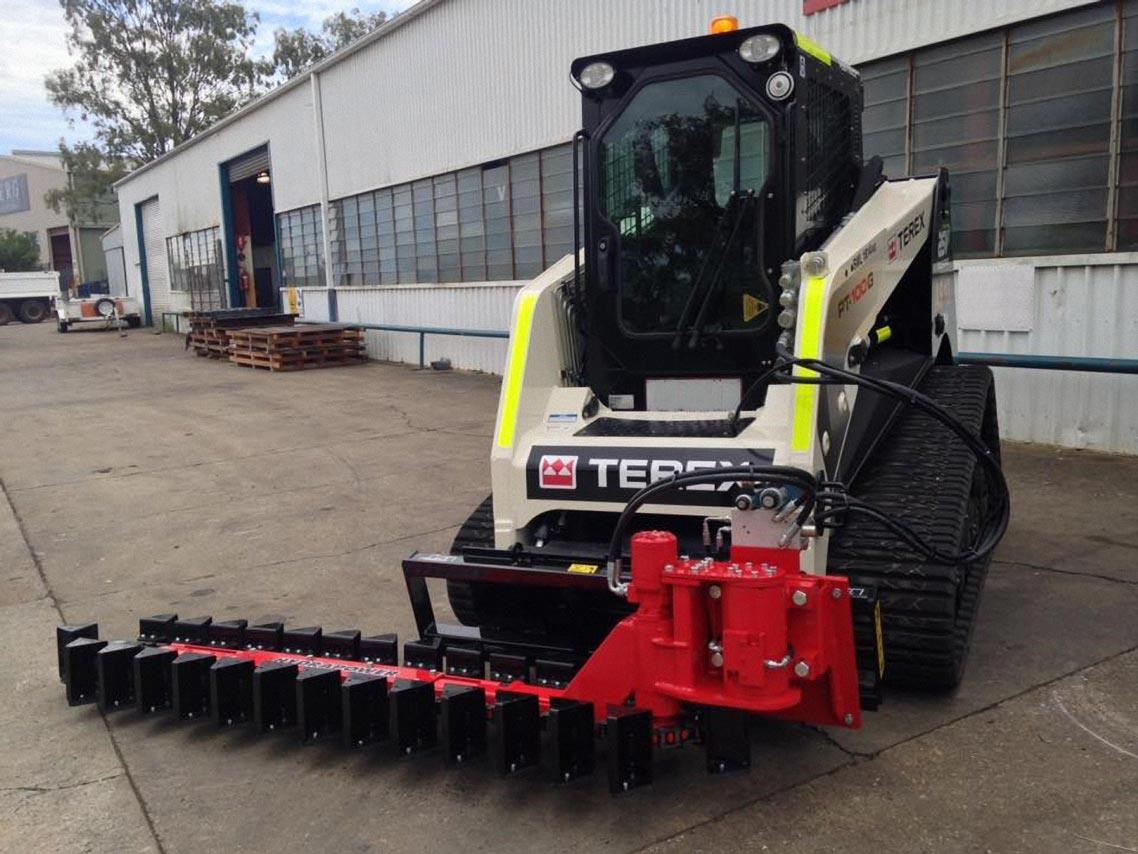

BUILT FOR STRENGTH AND STAMINA - MADE IN AUSTRALIA - UNDER CONVEYOR DEBRIS SCRAPERS Under cutter / Debris Scraper is used to clean debris out from areas where a loader is unable to reach for example under conveyors or in chook sheds with a minimum clearance of around 250mm. ??? The main frame can be side shifted to one side to increase the reach of the Scraper. ??? SSU1800 is fitted with a hydraulic actuator for changing the position of the boom through a 180 degree angle to the machine. ??? A robust hydraulic motor drives the chain via a drive shaft. This design reduces wear parts (eg. gearboxes), requires no on-going servicing, and achieves high start-up torque. ??? Nylon wear pads support the centre of the chain to stop sagging. UNDERCUTTER / DEBRIS SCRAPER SSU1800 UNDERCUTTER Recommended Host Machine Skid Steer (Wheeled &Tracked) Loader Boom Slew Angle 180?? Boom Slew Mechanics Hydraulic Maximum Reach 2800mm Paddle Width 350mm Minimum Boom Clearance 250mm Paddle Composition Steel Number of Paddles 28 Hydraulic Flow Required 40???80lpm
