Features
| Title | Hammer/Breaker - Hydraulic CATERPILLAR 336 EH165DB |
| Type | Machinery Attachments |
| Sub Type | Miscellaneous |
| Make | CATERPILLAR |
| Model | 336 |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | 150120544071 |
| RefCode | TA1322939 |
Description

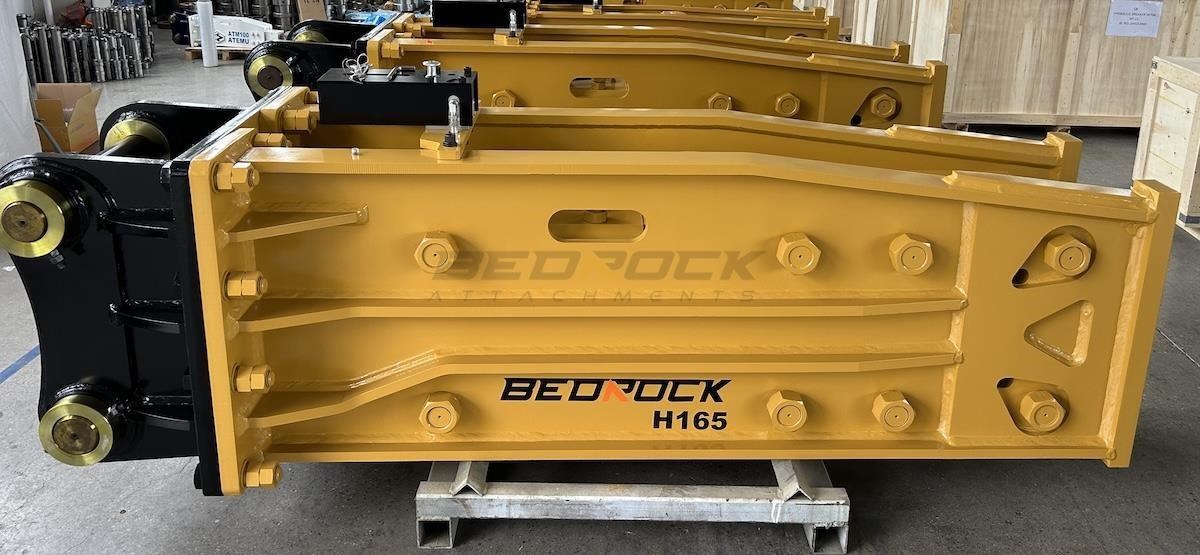

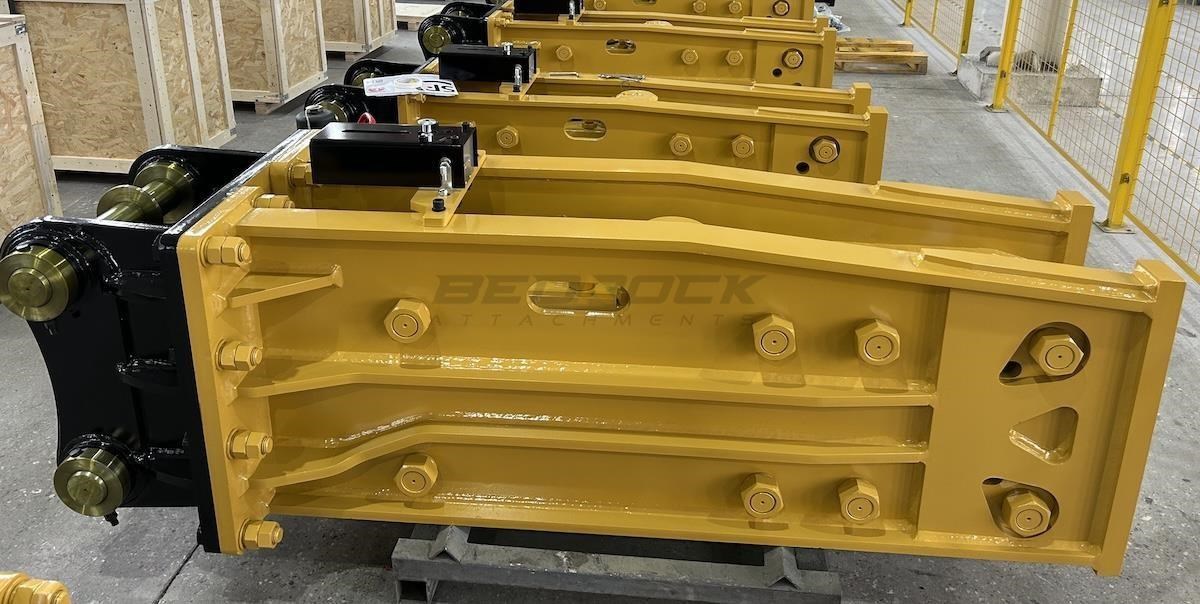

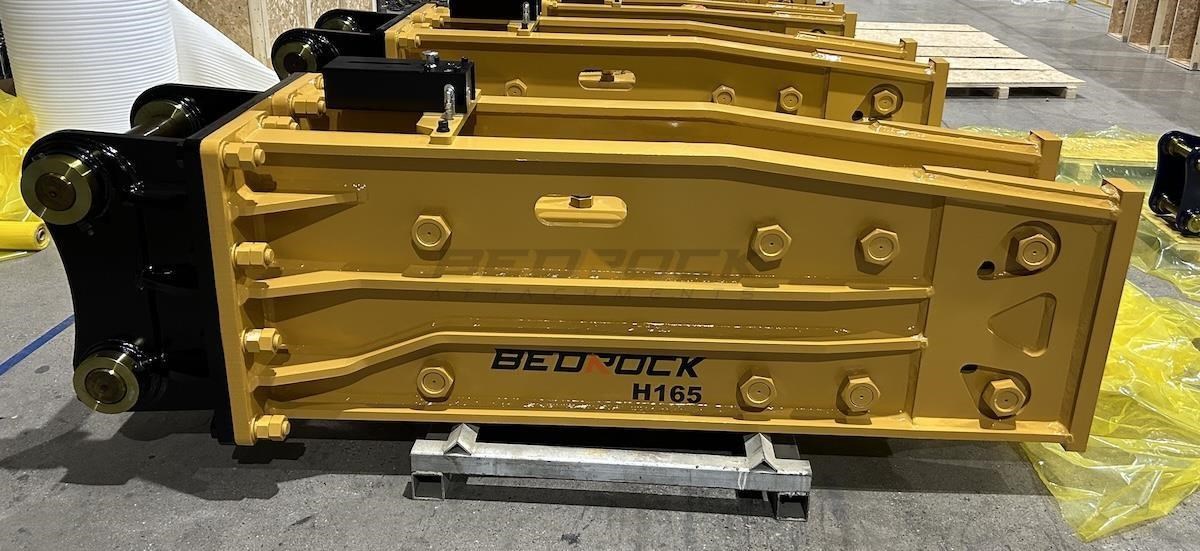

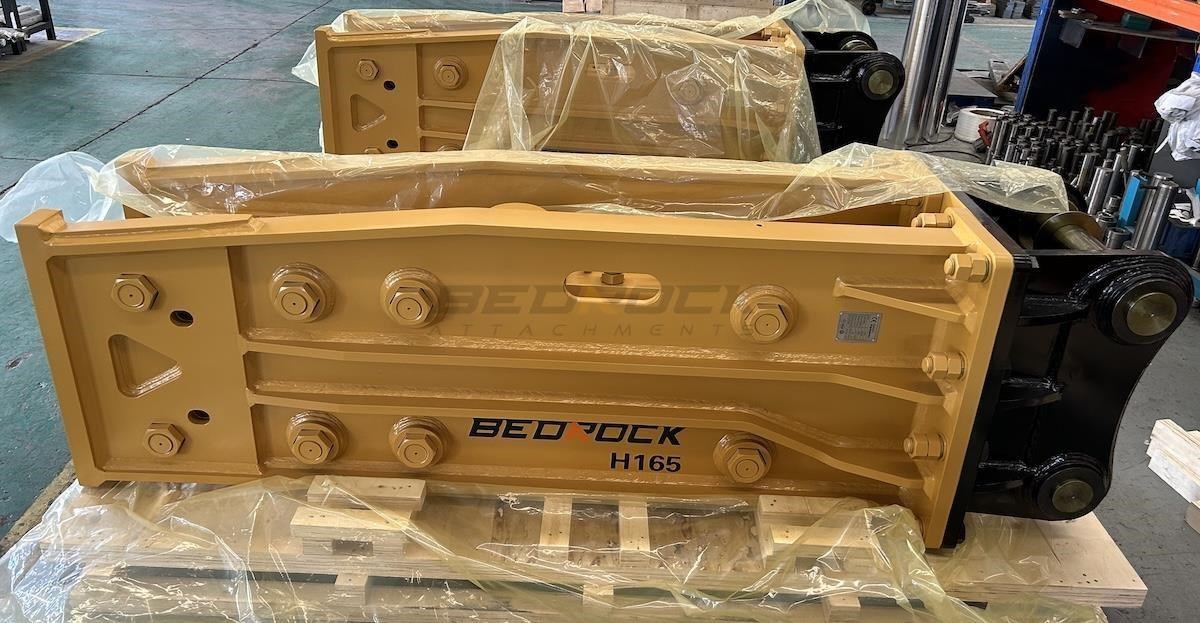

35-40 Ton, CAT 336 ATM3500, H165, SB131 Excavator Hammer
SKU: EH165DB
Fit to
CAT 336
Operating pressure: 160-190kg/cm² (2272-2699 psi / 157-186 bar)
Hydraulic flow range: 200-250l/min (52.8-65.79 gal/min)
Impact frequency 250-380bpm
Impact Energy 11150-11400J
Diameter of hose: 31.75mm
Diameter of Tool 165mm/6.5inch
Weight of Tool 204kg
Suitable Carrier: 1.2-1.6m³
Suitable Carrier: 30-40ton
Valve Type: Inward
Accumulator exists: Yes
- Body Weight: 1590 kg / 3498 lbs
- Total weight: 3447 kg
- Length: 3446 mm
- Width: 665 mm
- Height: 840 mm
SKU: EH165DB
Fit to
CAT 336
Operating pressure: 160-190kg/cm² (2272-2699 psi / 157-186 bar)
Hydraulic flow range: 200-250l/min (52.8-65.79 gal/min)
Impact frequency 250-380bpm
Impact Energy 11150-11400J
Diameter of hose: 31.75mm
Diameter of Tool 165mm/6.5inch
Weight of Tool 204kg
Suitable Carrier: 1.2-1.6m³
Suitable Carrier: 30-40ton
Valve Type: Inward
Accumulator exists: Yes
- Body Weight: 1590 kg / 3498 lbs
- Total weight: 3447 kg
- Length: 3446 mm
- Width: 665 mm
- Height: 840 mm
