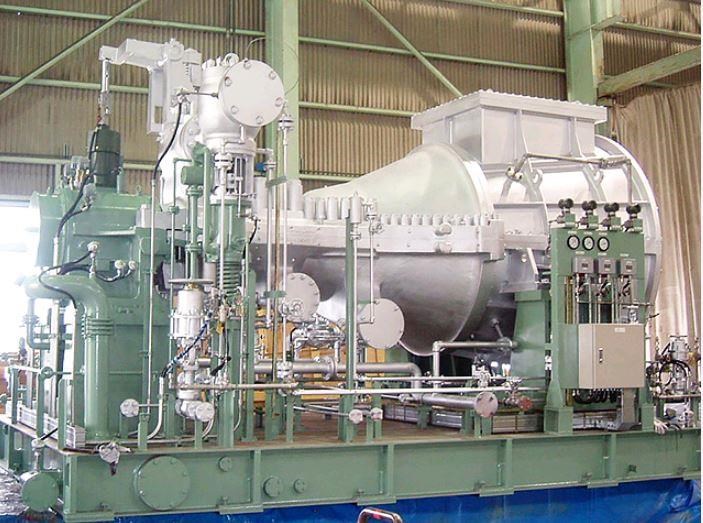

44500 KW 44.5 MVA STEAM TURBINE SHIN NIPPON
Contact Seller
Features
| Title | 44500 KW 44.5 MVA STEAM TURBINE SHIN NIPPON |
| Type | Mining |
| Sub Type | Mining Miscellaneous |
| Make | 44500 KW 44.5 MVA STEAM TURBINE |
| Model | SHIN NIPPON |
| Sale Price | POA |
| Listing Type | Used |
| Stock Number | Turbine01 |
| RefCode | TA1090403 |
Description
Model: C10-R16-EX
Type: Horizontal, impulse, multi-stage multi-valve, axial flow, condensing, extraction & direct coupled
Rated Output Generator Terminal: 44,500 Kw
Operating Conditions:
Speed (turbine/generator): 3000 / 3000 rpm
Inlet steam pressure: 68.06 barA
Inlet steam temperature: 447 deg C
Exhaust steam pressure: 0.136 barA
Un-controlled Extraction: at Turbine nozzle
Max. 2nd Extraction pressure: 1.94 barA
Un-controlled Extraction: at Turbine Nozzle
Max. Inlet flow: 194600 kg/hr
Max. 1st Extraction flow: 25880kg kg/hr
Max. 2nd Extraction flow: 9870 kg/hr
Max. Exhaust Steam flow: 158750 kg/hr at 0.253 barA
Type: Horizontal, impulse, multi-stage multi-valve, axial flow, condensing, extraction & direct coupled
Rated Output Generator Terminal: 44,500 Kw
Operating Conditions:
Speed (turbine/generator): 3000 / 3000 rpm
Inlet steam pressure: 68.06 barA
Inlet steam temperature: 447 deg C
Exhaust steam pressure: 0.136 barA
Un-controlled Extraction: at Turbine nozzle
Max. 2nd Extraction pressure: 1.94 barA
Un-controlled Extraction: at Turbine Nozzle
Max. Inlet flow: 194600 kg/hr
Max. 1st Extraction flow: 25880kg kg/hr
Max. 2nd Extraction flow: 9870 kg/hr
Max. Exhaust Steam flow: 158750 kg/hr at 0.253 barA
